NaceCare Duplex DH 420 14" Hybrid CRB Multiwash Scrubber - DH420

Most commercial floor scrubbers make you choose. Hard floors or carpet. Tile or safety flooring. The NaceCare Duplex DH 420 skips that whole conversation. This counter-rotating brush multiwash scrubber handles hard floors, carpet, grouted tile, rubberized safety flooring, concrete, and even escalators, all with the same machine and the same 14" cleaning path. If your facility has more than one floor type (and it probably does), this is the machine that stops you from needing three different ones.

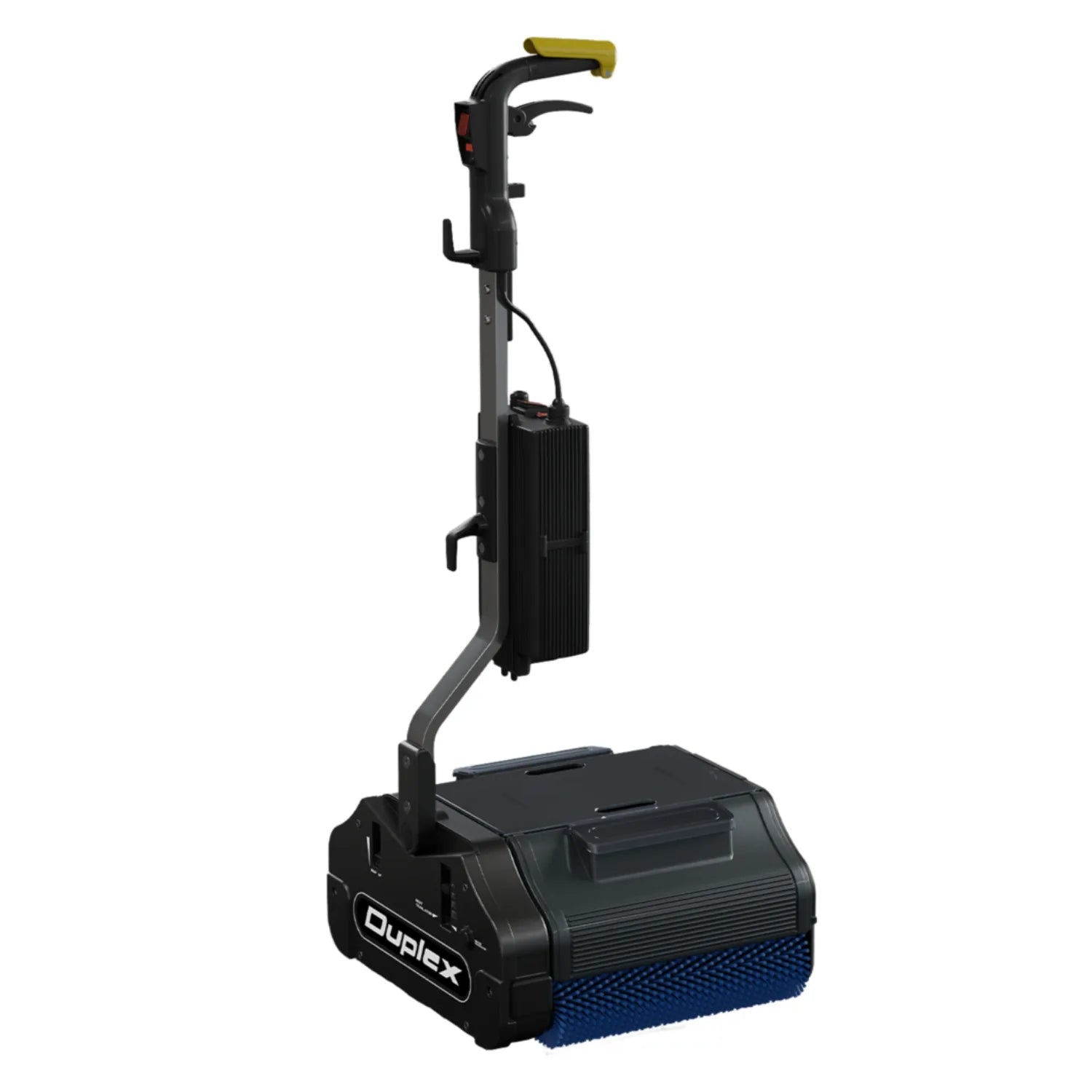

The DH 420 is a cylindrical floor scrubber built by Duplex International in Italy and distributed in the USA by NaceCare Solutions. It uses a low-moisture hydrowashing method that works differently from the disc-pad auto scrubbers you might be used to. Two counter-rotating brushes spin at 650 RPM with 57 lbs of brush pressure, scrubbing the floor while simultaneously lifting dirty water onto internal conveyor belts. A center recovery tank collects everything. That is the whole point. Less moisture means faster dry times, less slip risk, and no waiting around for floors to be walkable again. Plus, you can add the steam kit and tune up your cleaning power with the Duplex 420 Steam.

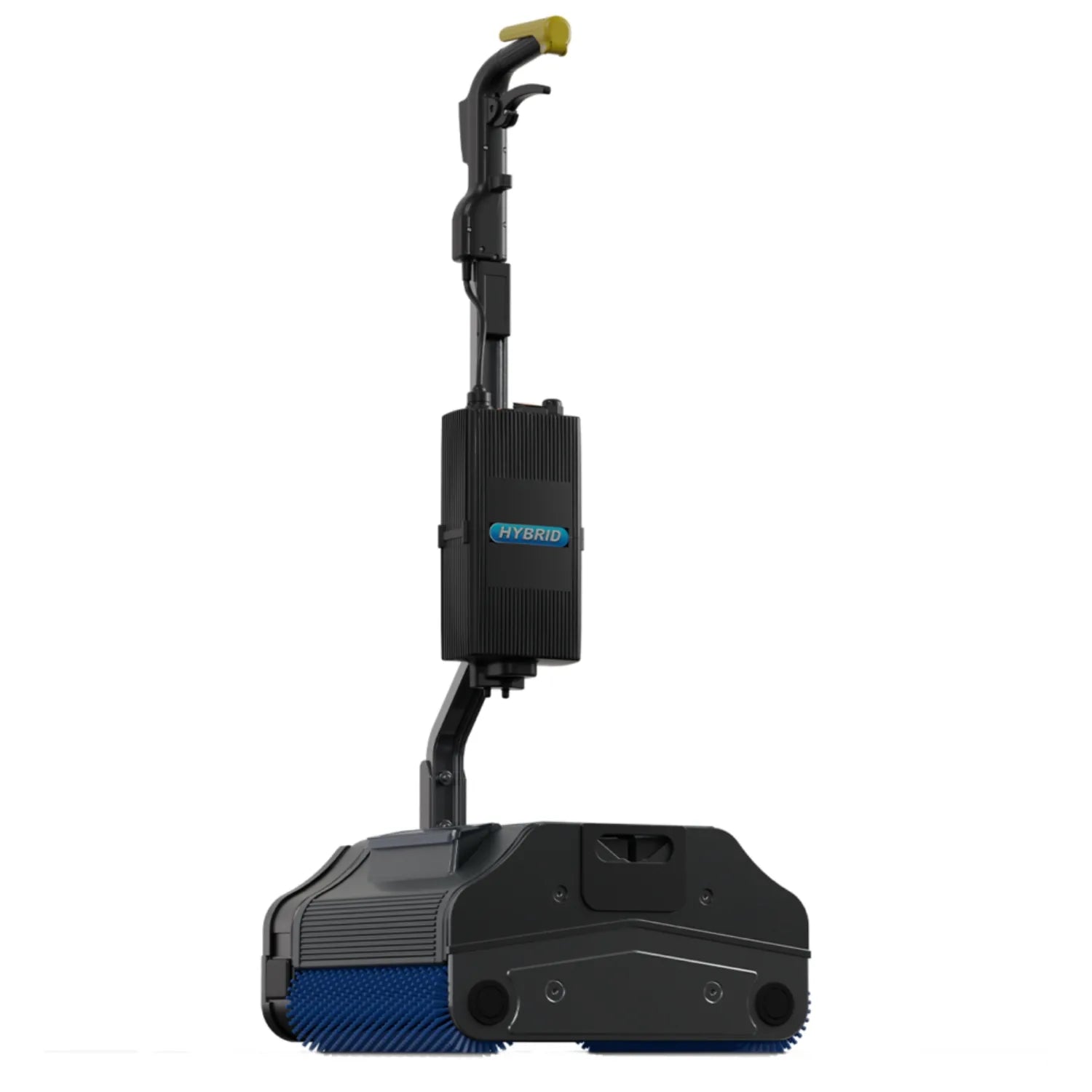

Power comes from the included Hybrid Box (H-Box), a corded power module with a 40' power cord that gives you unlimited runtime on standard 110V electricity. No batteries to charge, no runtime anxiety, just plug in and go for as long as the job takes. And here is where it gets interesting: the DH 420 is built on a modular platform. Need to go cordless? Add the Lite Battery module and a charger and you have a battery-powered machine with 50 minutes of runtime and a one-hour charge. Same machine, new capability. No trade-ins, no replacements, just snap in the battery and cut the cord.

With a working capacity of 4,000 sq. ft. per hour and a noise level of just 64 dB(A), the Duplex DH 420 is quiet enough for daytime cleaning in offices, hotels, and schools. The machine weighs 60 lbs (27.5 kg) and cleans right up against baseboards and obstacles thanks to the offset brush position. Whether you are a janitorial contractor, facility manager, or BSC looking to simplify your equipment closet, this is the one machine that actually does what the brochure says it does. (We checked. Many times.)

• 14" cleaning path covers 4,000 sq. ft. per hour, so you can knock out large areas without spending your whole shift on one floor.

• Counter-rotating brushes at 650 RPM with 57 lbs of pressure scrub, agitate, and recover in a single pass. Hard floors, carpet, grouted tile, safety flooring, concrete. All of it.

• Low-moisture hydrowashing leaves floors drier than conventional scrubbers, which means faster dry times, reduced slip risk, and no "wet floor" signs blocking traffic for an hour.

• Unlimited runtime with the included H-Box plugs into any standard 110V outlet with a 40' power cord. No batteries to manage, no downtime.

• Modular hybrid platform lets you add a Lite Battery for cordless operation or a Steam Kit for chemical-free sanitizing without buying a new machine.

• Bi-directional handle operation lets you clean in forward and reverse, reaching both sides of every room and getting into tight spaces other machines just cannot reach.

• 800,000 bristles across the UltraBrush system with three brush options: Blue Soft for daily maintenance, Yellow Medium for extra scrubbing power, and Red Max for heavy-duty jobs.

• 64 dB(A) noise level is quiet enough for daytime cleaning in occupied spaces like hotels, schools, and medical facilities.

• Offset brush design cleans right up against baseboards and obstacles without leaving a gap that needs hand-mopping later.

• 1.6 gallon solution tank and 1 gallon recovery tank keep the machine light and manageable while providing enough capacity for extended cleaning runs.

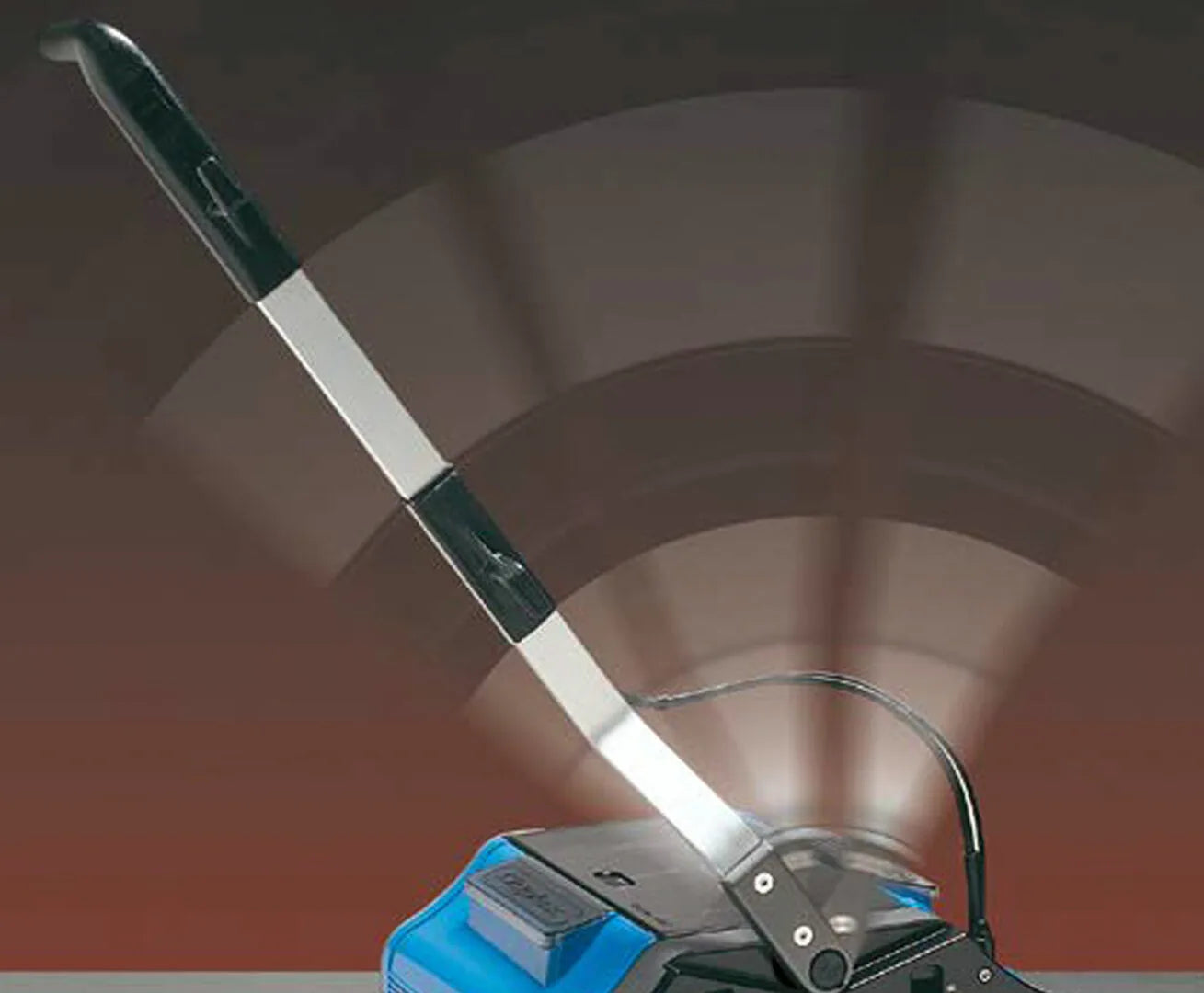

Most walk-behind scrubbers only clean in one direction. You push forward, turn around, push forward again. The DH 420's handle swings to either side, letting you clean in both forward and reverse directions without repositioning the machine.

In practice, this means you can work your way down a hallway, swing the handle to the other side, and work your way back, cleaning the opposite edge on the return trip. No three-point turns, no awkward maneuvering in tight spaces. The offset brush position means you are cleaning right up to the wall on each pass, so there is no strip of untouched floor along the baseboard that needs hand-mopping later.

It sounds like a small thing until you have spent an afternoon cleaning a building full of narrow corridors. Then it sounds like whoever designed this machine actually used one.

The DH 420 uses NaceCare's UltraBrush system, which gives you three brush options depending on what the job calls for:

Blue UltraBrush Soft is the standard, non-abrasive brush that comes with the machine. It handles daily maintenance on all floor types, from hardwood to tile to low-pile carpet.

Yellow UltraBrush Medium steps up the scrubbing power for floors that need a more aggressive clean. Good for grouted tile, textured surfaces, and commercial carpet that sees heavy foot traffic.

Red UltraBrush Max is the heavy-duty option for jobs that need serious abrasion. Concrete restoration, heavily soiled industrial floors, ground-in dirt that the other brushes just cannot budge.

Swapping brushes takes a couple of minutes with the included Allen key. No tools to buy, no technician needed. Just pop the side panel, slide the brushes out, and slide the new set in. The machine has four operating height positions to match brush pressure to the floor type, from heavy-duty hard floor scrubbing all the way down to gentle long-pile carpet cleaning.

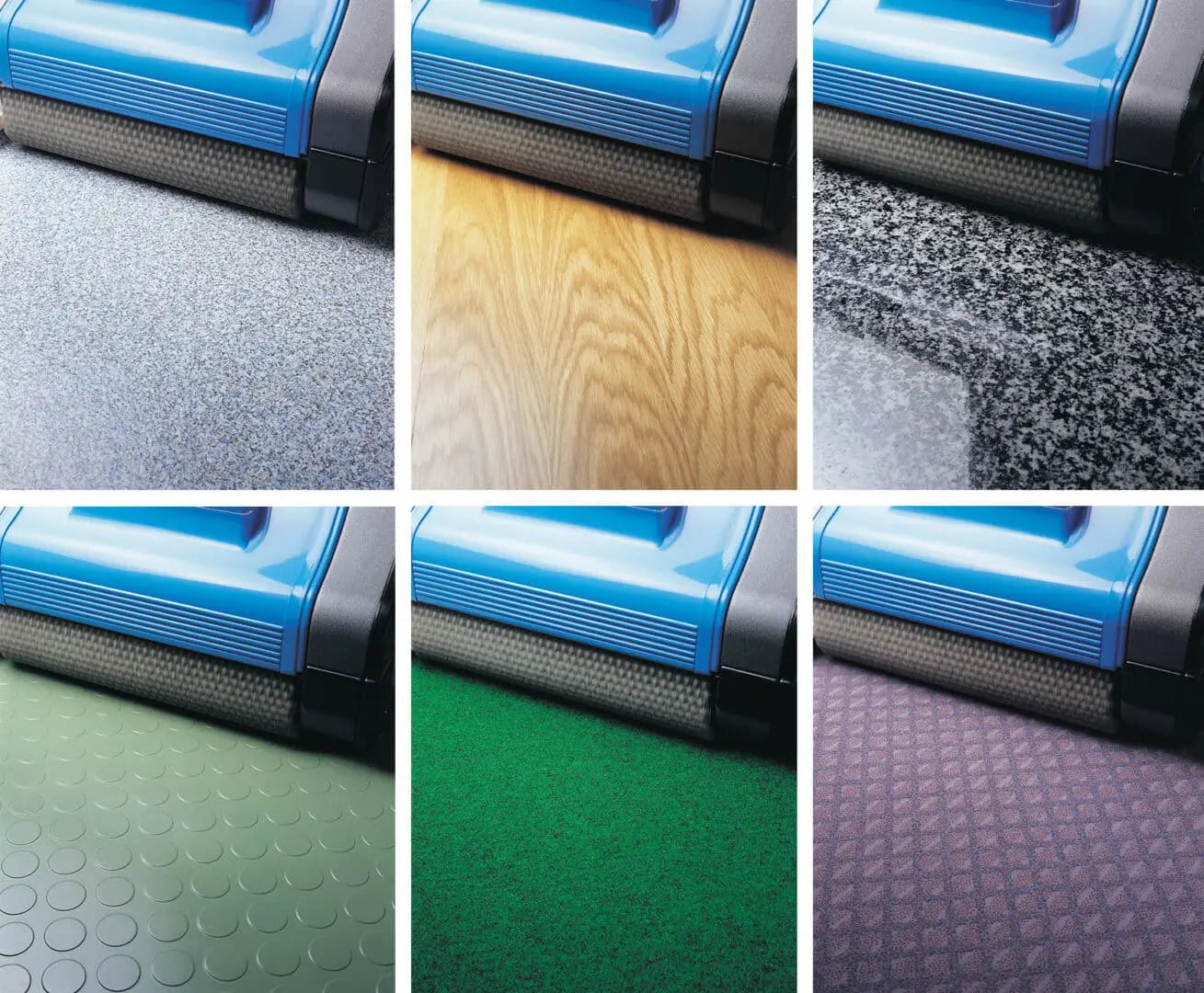

This is the part where most product pages give you a vague "cleans multiple surfaces" and move on. Here is the actual list of what the Duplex DH 420 is rated to clean:

Ceramic tile, rubber flooring, terracotta, cement and concrete, hardwood, plastic and vinyl, non-slip safety flooring, PVC, profiled rubber, sports safety flooring, epoxy resin, brick, marble, granite, relief ceramics, linoleum, porcelain, glass, artistic mosaics, quartz, and carpet (both standard and long-pile).

That is not marketing language. That is the manufacturer's tested and rated surface compatibility list. If your facility has two, three, or even four different floor types across different areas, one DH 420 handles the rotation instead of a different machine for each surface.

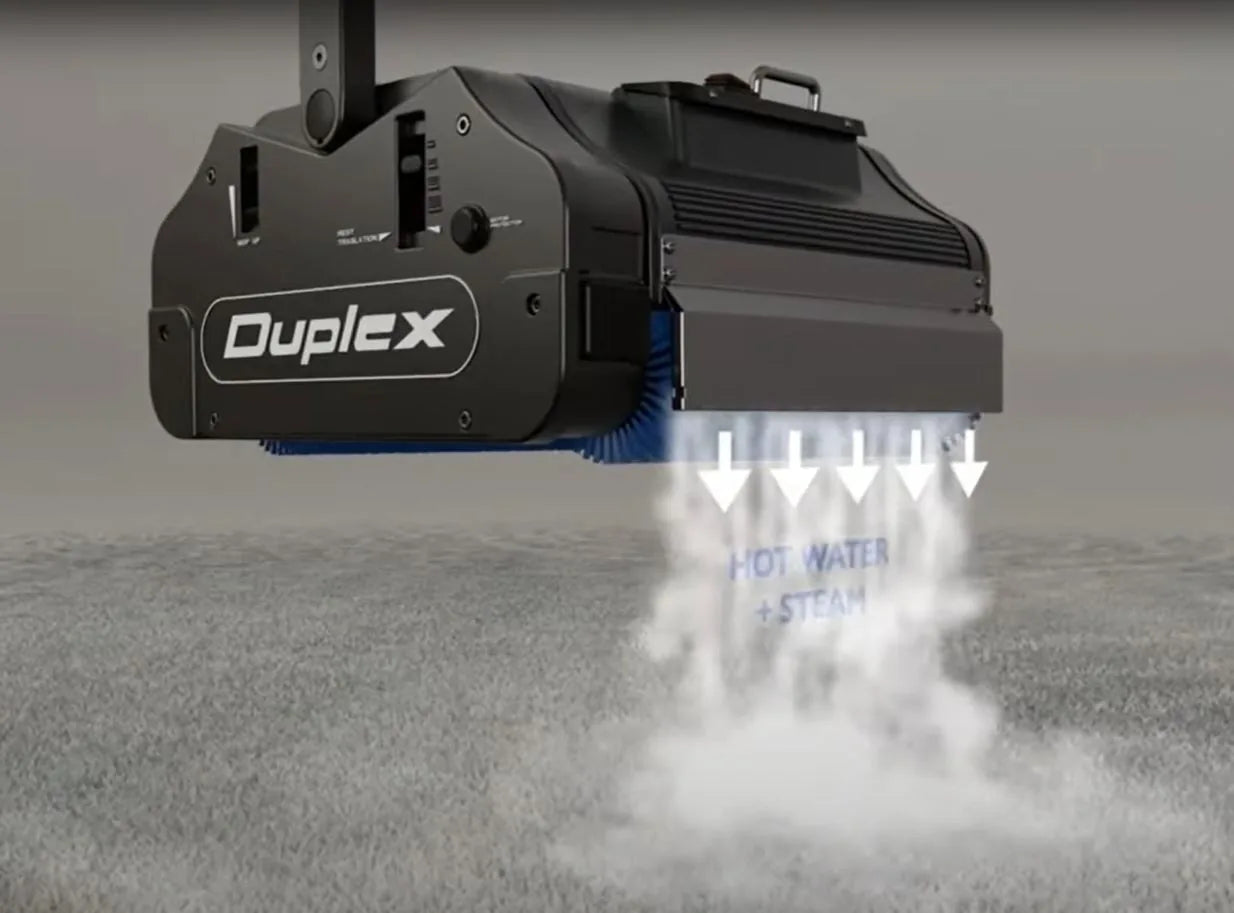

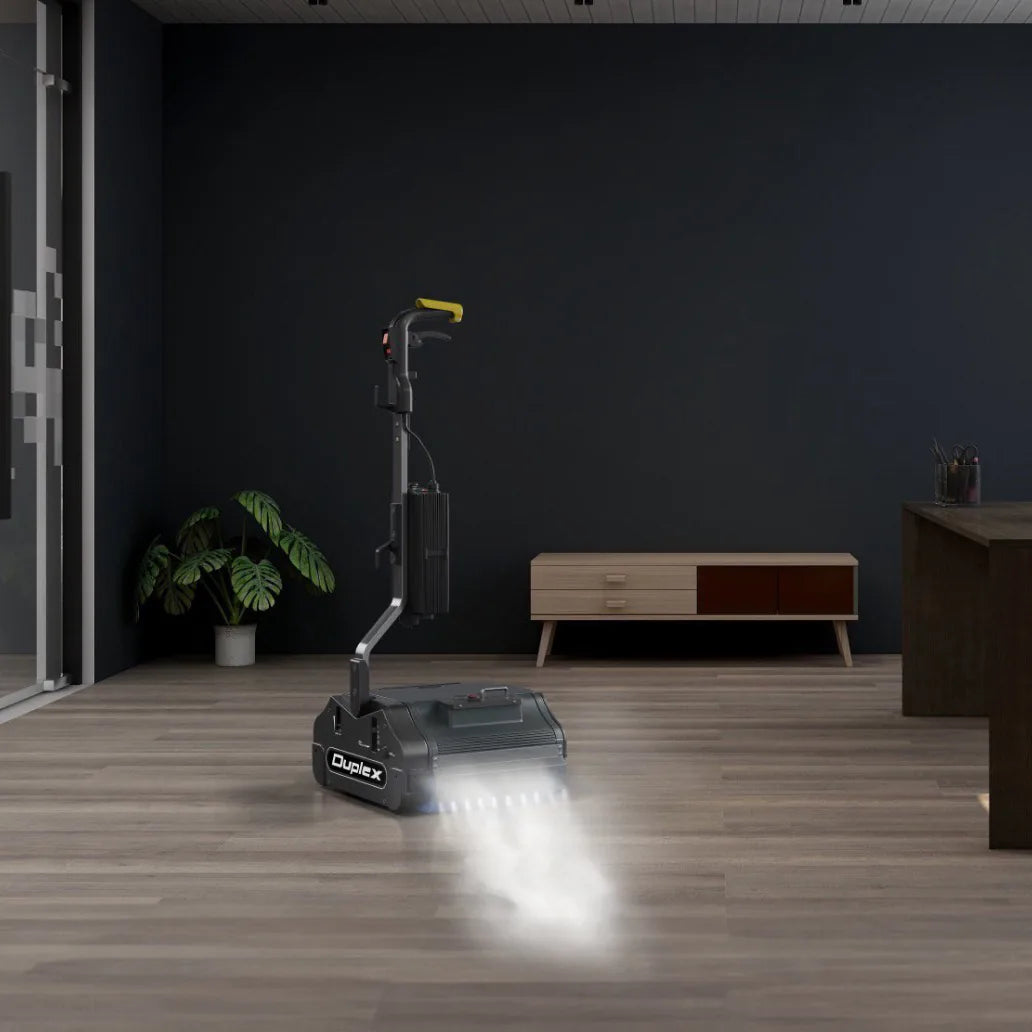

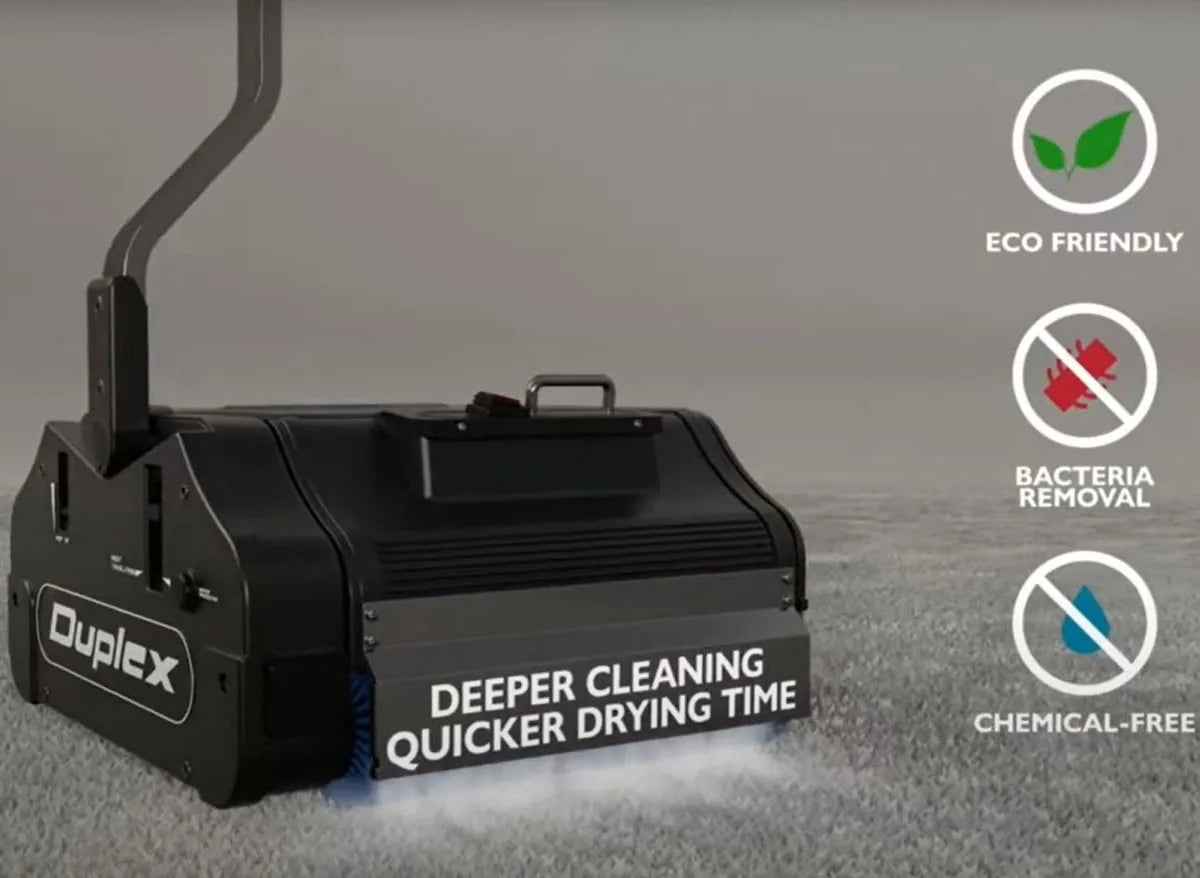

The DH 420 is available in a Steam configuration that adds a built-in steam generator to the machine. Instead of relying on chemical sanitizers, the steam variant delivers high-temperature steam directly to the floor surface during the scrubbing pass. One machine, one pass, scrubbing and sanitizing at the same time.

The steam system uses a 1,500W boiler that heats water to approximately 230°F (110°C) and delivers it through a 13" (330 mm) steam jet width. The steam variant uses a dedicated 0.8 gallon (3.0 L) solution tank for the steam generator (the standard variant uses its full 1.6 gallon / 6.1 L tank for cleaning solution instead). Steam takes about 30 seconds to start flowing after you begin operating the machine.

Important note: Steam functions only during corded (H-Box) operation. If you add the Lite Battery module for cordless use, steam will not be available in battery mode. This is a power requirement, not a design oversight. The 1,500W boiler needs more sustained power than the battery module provides.

This makes the Steam variant particularly well-suited for healthcare facilities, food service environments, childcare centers, and any operation where reducing or eliminating chemical use is either a requirement or a competitive advantage when bidding contracts. If your clients are asking about green cleaning, the DH 420 with Steam is your answer.

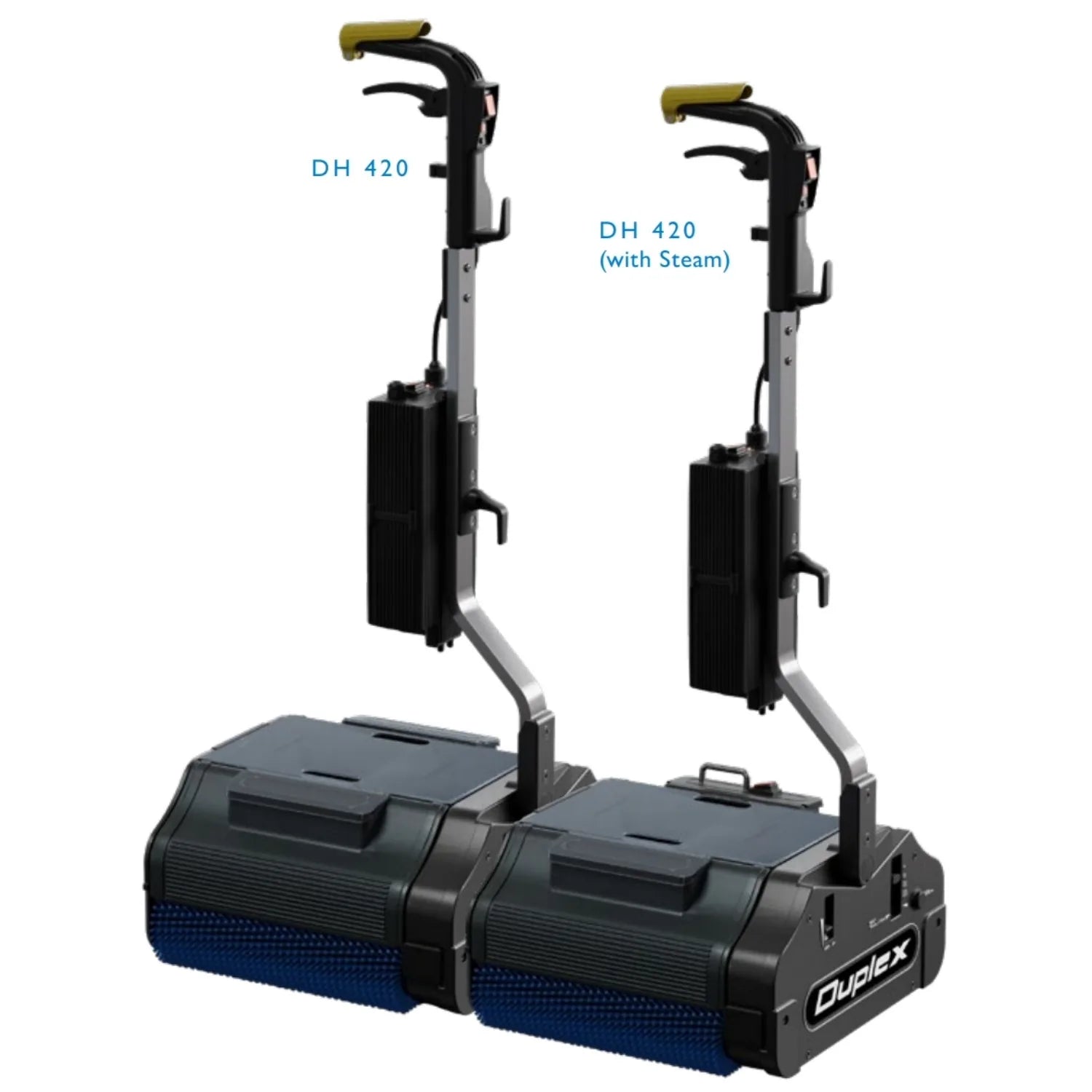

DH 420 Hybrid Electric (Steam-Ready)

Best for: Commercial cleaning operations, hotels, schools, retail facilities, and office buildings where scrubbing performance is the priority. You are focused on getting floors clean and dry, and chemical-free sanitizing is not a current requirement. If you decide you want steam later, you can add it with the Steam Kit module upgrade without replacing the machine.

DH 420 Hybrid Electric with Steam

Best for: Healthcare, food service, childcare, and any environment where reducing or eliminating chemical use is a requirement, a selling point, or both. Steam delivers sanitizing action in the same pass as scrubbing, no separate steamer needed. Remember: steam functions on corded (H-Box) operation only, so plan accordingly if you are also adding the battery module for cordless cleaning runs.
