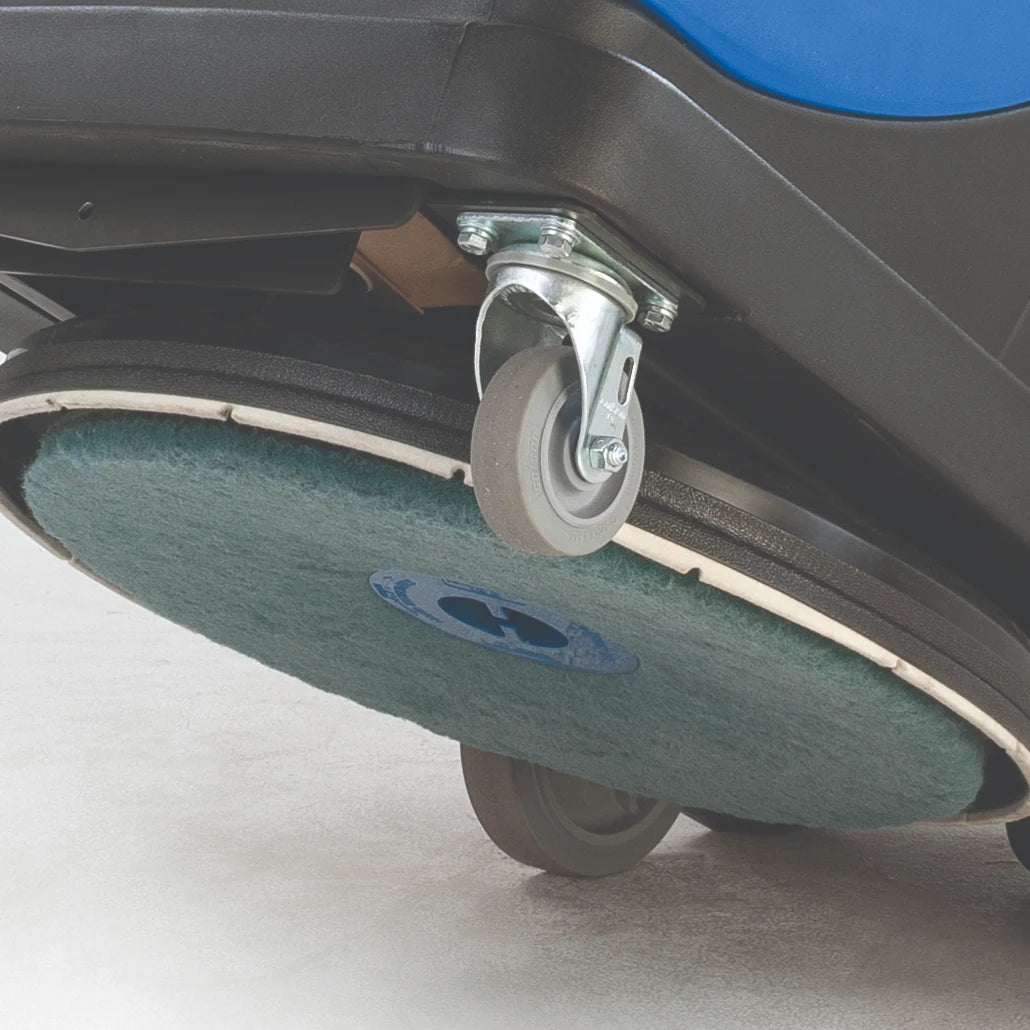

Clarke 54198A ventilated pad driver with a pad and center lock, mounted under the Ultra Speed 20 dust shroud

Clarke 20" Ventilated Pad Driver for the Ultra Speed 20 and 20T Burnisher, 54198A

by Clarke
$457.91 + free shipping

Notify me when back in stock

Authorized Retailer Clarke
Ships within 3–5 Business Days
Estimated Delivery 7–10 Business Days
Financing Available at CheckoutBreak up your purchase into manageable monthly payments
No Sales Tax Tax-free in all states except Wyoming
Manufacturer Warranty IncludedFull warranty coverage backed directly by Clarke
Found a Lower Price? We'll Beat It. Call or send us a message and we'll beat any competitor's price.
(855) 601-5678  ·  support@oneupcleaning.com

The Pad Driver That Keeps Your Ultra Speed 20 Running True

The 54198A is the 20-inch ventilated pad driver for the Clarke Ultra Speed 20 and 20T battery burnishers. It spins the burnishing pad at 2,000 RPM and, with the machine's double-pivot design, lets the pad follow the floor's contours for an even shine.

Every Ultra Speed 20 and 20T ships with one. Replace it when it's cracked, warped or worn, or keep a second driver loaded with another pad so a pad change takes seconds.

Why Use the Genuine Clarke Pad Driver

  • Made for the Ultra Speed 20 and 20T. The pad driver listed in their parts manual.

  • Ventilated. Nilfisk lists it as a ventilated pad driver.

  • Full 20-inch path. Runs standard 20-inch high-speed burnishing pads.

Changing the Pad

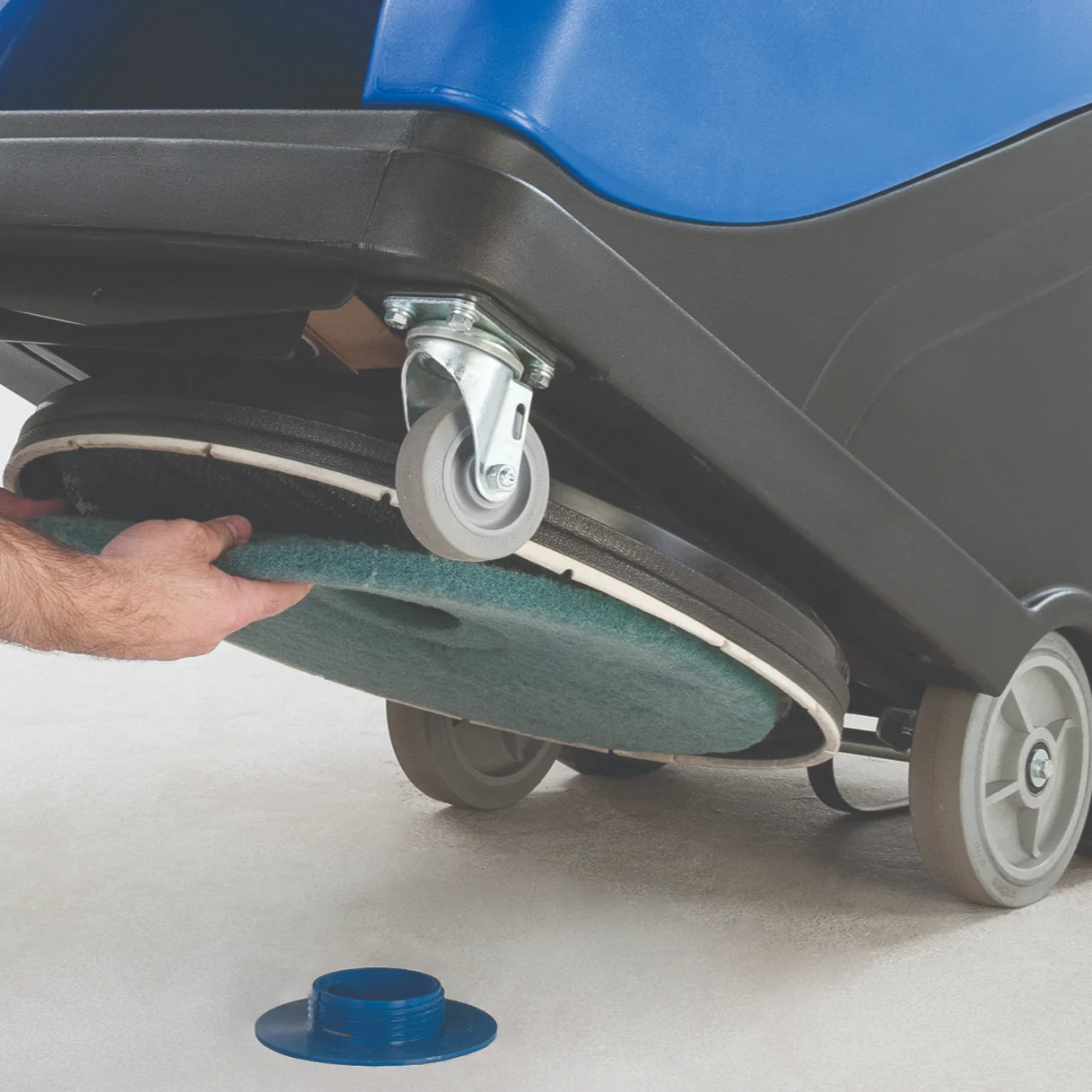

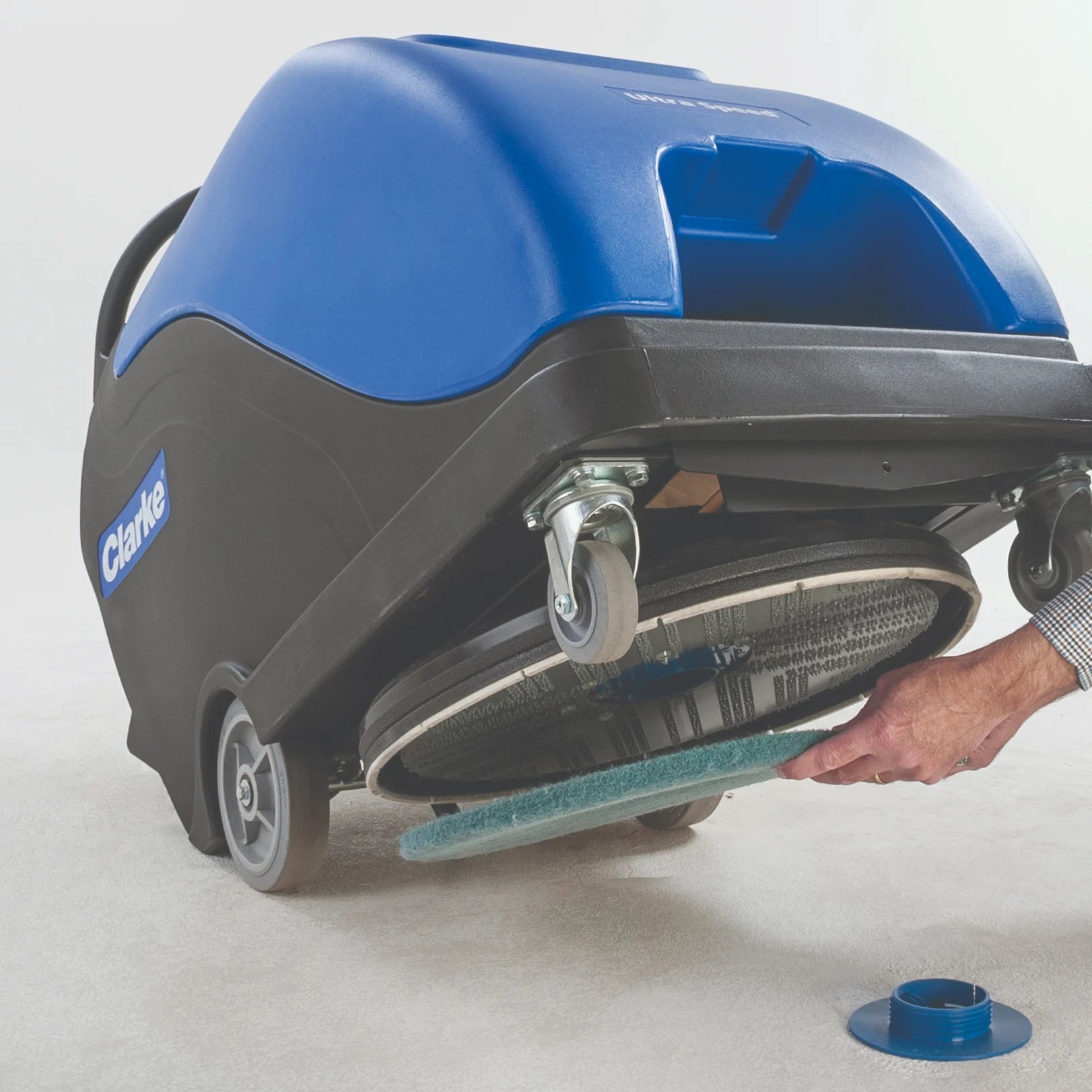

Turn the key switch off and tip the machine back into the pad-change position shown in the manual. From the front of the machine, hold the pad retainer with one hand and turn the pad and pad driver counterclockwise to loosen the retainer. Remove the old pad and fit a new one, centered on the outside edge of the pad driver rather than on the center hole, since an off-center pad can cause vibration. Tighten the retainer as tight as you can, then lift the back of the machine to lower the pad housing. Always use a quality pad rated for 2,000 RPM.

Our Clarke 20-inch burnishing pads are the ones Clarke lists for this machine. Pad drivers are wear items and aren't covered by Nilfisk's machine warranty except for manufacturing defects.

Clarke 54198A Pad Driver Specifications

Brand Clarke (Nilfisk)
Part Number 54198A
Nilfisk Description Driver pad, ventilated
Pad Size 20 in (51 cm)
Pad Speed 2,000 RPM (Ultra Speed 20 and 20T)
Fits Clarke Ultra Speed 20 and 20T (56383522, 56383523, 56383524, 56383525)
Pad Rating Needed 2,000 RPM
Does Not Fit Clarke Ultra Speed Pro 1500 (uses the VF99024 pad holder)

Document Downloads

Clarke Ultra Speed 20 and 20T Operator and Parts Manual (English, Spanish, French; PDF, 4.1 MB)

Not sure which part you need? Send us your machine model or serial number, call (855) 601-5678 or email support@oneupcleaning.com, and we'll confirm the fit before you order.

Frequently Asked Questions

Does the 54198A fit both the Ultra Speed 20 and the 20T?

Yes. The traction and non-traction models, wet or AGM, use the same 54198A pad driver.

What pads should I use?

20-inch burnishing pads rated for 2,000 RPM. Clarke's manual says to always use a quality pad rated for 2,000 RPM.

Why does my burnisher vibrate after a pad change?

Clarke's manual says vibration can happen if you center the pad on its center hole instead of on the outside edge of the pad driver. Refit the pad centered on the driver's outside edge.

Does it fit the Ultra Speed Pro 1500?

No. The corded Pro 1500 uses the VF99024 pad holder.

Is the pad driver covered by warranty?

Only for manufacturing defects. Nilfisk treats pad drivers as wear items.
