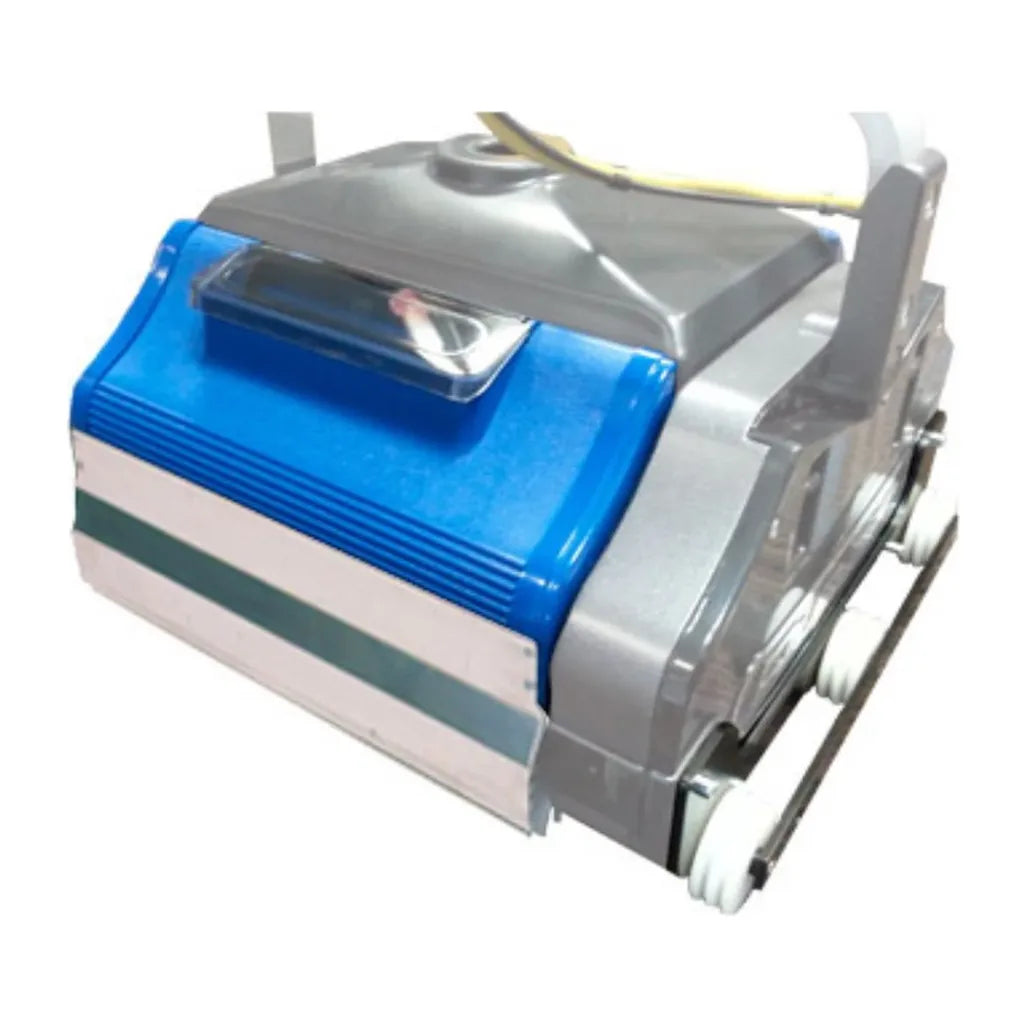

NaceCare 420497 Duplex escalator kit with blue water tanks, top lid and tread guide wheels

NaceCare Duplex Escalator Cleaning Kit (420497) for Duplex 420 Machines

by NaceCare
$1,679.78 + free shipping

Notify me when back in stock

Authorized Retailer NaceCare
Ships within 2–4 Business Days
Estimated Delivery 7–10 Business Days
Financing Available at CheckoutBreak up your purchase into manageable monthly payments
No Sales Tax Tax-free in all states except Wyoming
Manufacturer Warranty IncludedFull warranty coverage backed directly by NaceCare
Found a Lower Price? We'll Beat It. Call or send us a message and we'll beat any competitor's price.
(855) 601-5678  ·  support@oneupcleaning.com

What's in the kit:

  • Escalator trolley, water tanks and top cover with a vacuum hose opening
  • Tread guide wheels
  • A pair of escalator brushes
  • Fits the Duplex DP 420, DH 420 and DHB 420

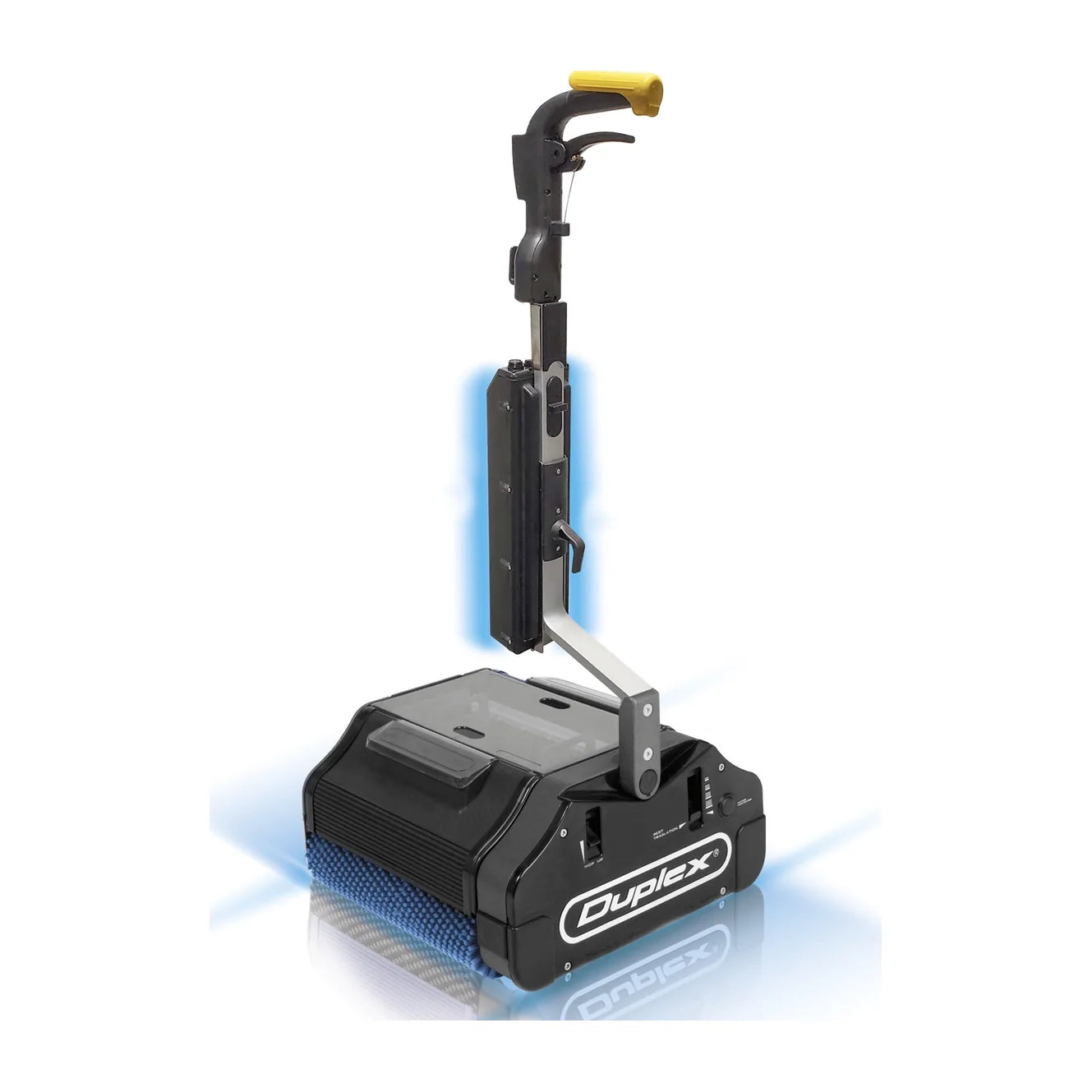

Turn Your Duplex 420 into an Escalator Cleaning Machine


Escalator steps collect grit and gum in their grooves, and a vacuum or a mop never gets down there. This NaceCare kit sets up a Duplex 420 to clean them: the machine rides on its escalator trolley, guide wheels follow the step, and the counter-rotating brushes scrub down into the grooves while the machine picks up the dirty water.

It fits the corded DP 420 and the hybrid DH 420 and DHB 420, so one machine handles your floors, carpets and escalators.


What's in the Escalator Kit?

  • Escalator trolley that carries the machine on the step.

  • Water tanks for escalator work.

  • Tread guide wheels that keep the brushes lined up with the step grooves.

  • A pair of escalator brushes, with longer, stiffer bristles that reach into the step grooves.

  • A top cover with an opening for a wet vacuum hose, for heavy jobs.


Do You Need a Vacuum with the Escalator Kit?

Not for routine cleaning. The Duplex lifts the dirty water into its own recovery tank as it scrubs. The vacuum is for heavy jobs, like the first deep clean of a neglected escalator, when a lot of grit and dirty water comes up. Then you put a wet vac hose into the opening in the kit's top cover and run the vacuum while the machine works.

No vacuum comes with the kit. A compact wet/dry vac is the easiest to carry from one escalator to the next: the corded CVC 370 Charles, or the cordless WVB 370NX, which pairs well with the battery DHB 420 where outlets are scarce.

Escalators from different makers have different groove spacing, so Duplex also makes escalator brushes for Otis, Schindler and Thyssen steps. Tell us your escalator make when you order and we'll make sure you have the right pair.


The Owner's Insights on Escalator Cleaning

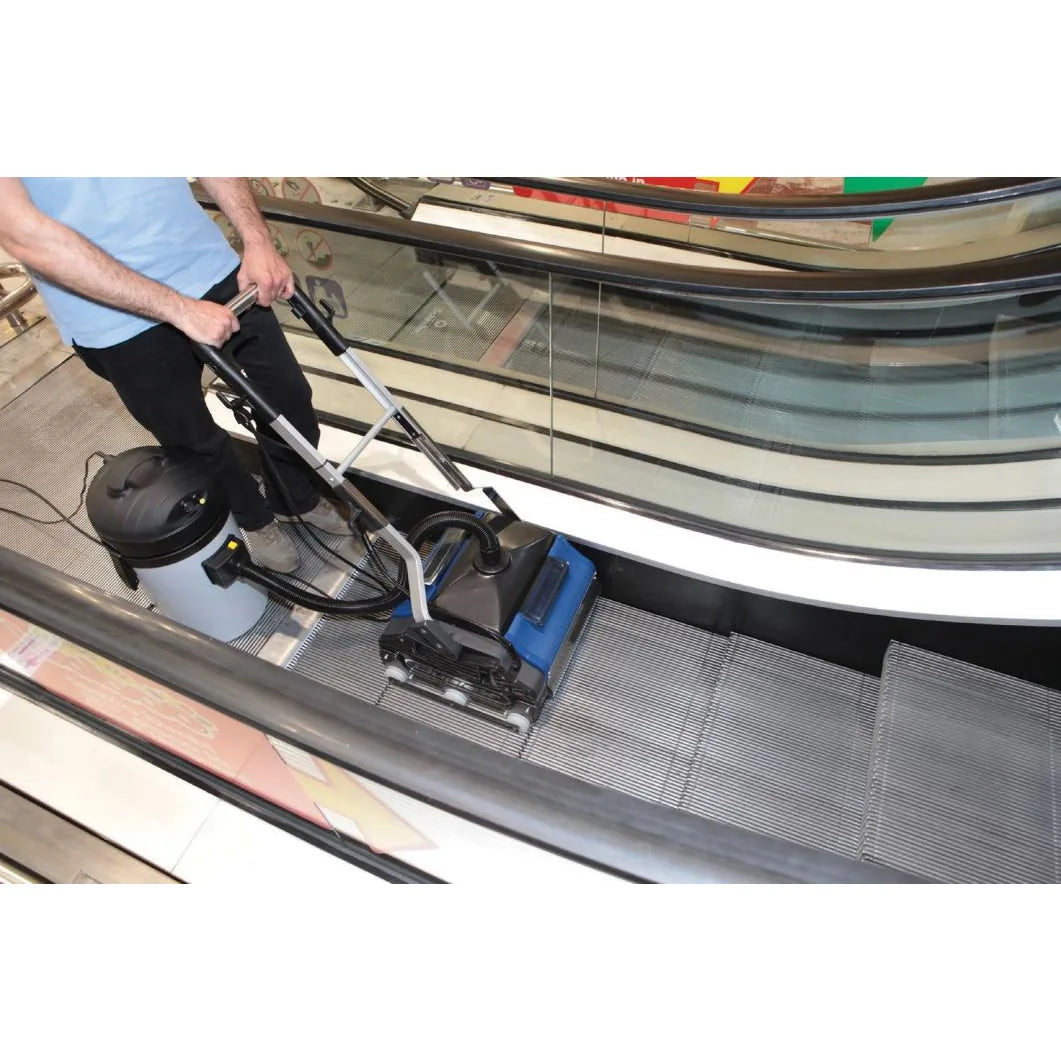

Clean escalators with the unit stopped and the landings barricaded, following the building's escalator safety procedure. You work one step at a time and move the escalator on as you go.

Power is the practical question. The corded DP 420 needs an outlet near the landing. The battery DHB 420 runs without a cord, up to 50 minutes on its Lite battery, which suits malls and transit stations where outlets are scarce.

Want to talk through an escalator job before you buy? Call (855) 601-5678 or message us.


Specifications: NaceCare Duplex Escalator Kit
Brand NaceCare (Duplex, Italy)
Part number 420497
Includes Escalator trolley, top cover with vacuum hose opening, water tanks, tread guide wheels, escalator brushes
Vacuum Not included; optional wet vac for heavy jobs
Fits Duplex DP 420, DH 420 and DHB 420
Escalator brushes by make Red 190141 (Otis), grey 190142 (Schindler), black 190161 (Thyssen), sold separately

Frequently Asked Questions

What does the escalator kit include?

An escalator trolley, a top cover with an opening for a wet vacuum hose, water tanks, tread guide wheels and a pair of escalator brushes. Your Duplex 420 does the scrubbing and picks up the water.

Does it come with a vacuum?

No. You don't need one for routine cleaning, since the Duplex picks up the dirty water itself. For heavy first cleans, put a wet vac hose into the opening in the top cover. A compact wet/dry vac like the CVC 370 Charles or the cordless WVB 370NX is easiest to carry between escalators.

Which machines does it fit?

The Duplex 420 family: the corded DP 420 and the hybrid DH 420 and DHB 420. NaceCare sells the DH and DHB as escalator-capable with this add-on kit.

Do the included brushes fit my escalator?

Duplex makes escalator brushes for Otis, Schindler and Thyssen steps, because their groove spacing differs. Tell us your escalator make when you order and we'll make sure you have the right pair.

Do I still use my regular brushes?

Yes. The 420 floor brushes stay on for floors and carpet, and you swap to the escalator brushes when you set the machine up on the kit.
