Spray and Brush in One Pass With the SPX Onboard Sprayer
Encapsulation usually means two trips over every room: one with a pump-up sprayer, one with the CRB (counter-rotating brush) machine. The SPX puts the sprayer on the machine, so your operator presses a trigger on the handle and the nozzle lays solution down just ahead of the brushes. Carpet Cleaner America says that cuts cleaning time by up to 50%, because the separate pre-spray pass is gone.
The SPX fits the Austrian TM4 and TM5, plus CCA's PRO 35 and PRO 45. It does not fit the 10-inch TM3. You can add it to a new machine or retrofit the TM4 or TM5 you already run.
Why You'll Love the SPX
No separate pre-spray pass, so one person sprays and brushes each section in a single walk across the room.
Trigger on the upper handle means your operator sprays only where the carpet needs it and keeps both hands on the machine.
A 110 degree fan nozzle spreads the solution across the brush path instead of soaking one stripe.
Up to 60 fl oz a minute at 55 psi is enough for traffic lanes, and the trigger lets you meter it so a low-moisture job stays low-moisture.
Made for encapsulation, the low-moisture method most offices and schools want because the carpet is back in use quickly.
What Comes in the SPX Kit

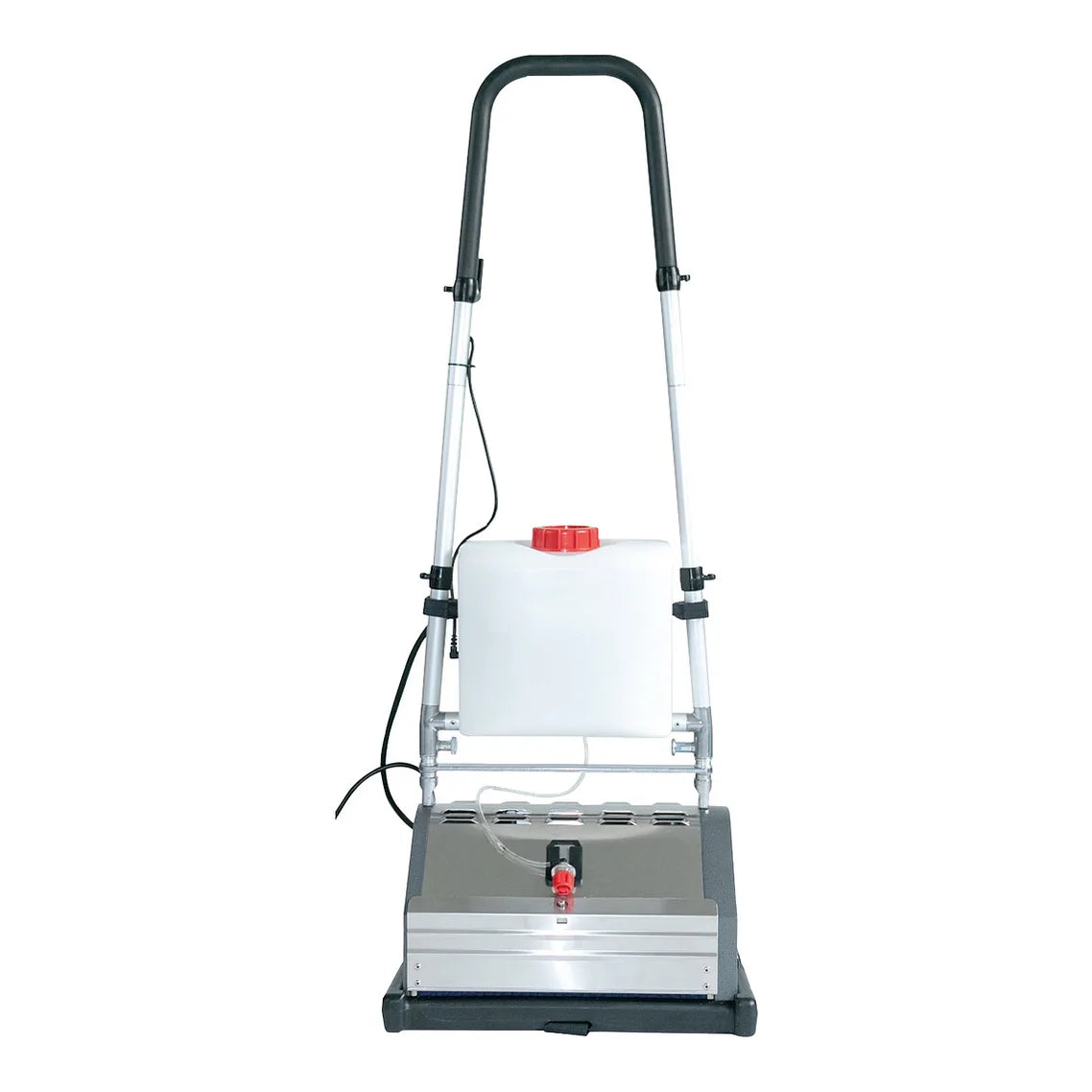

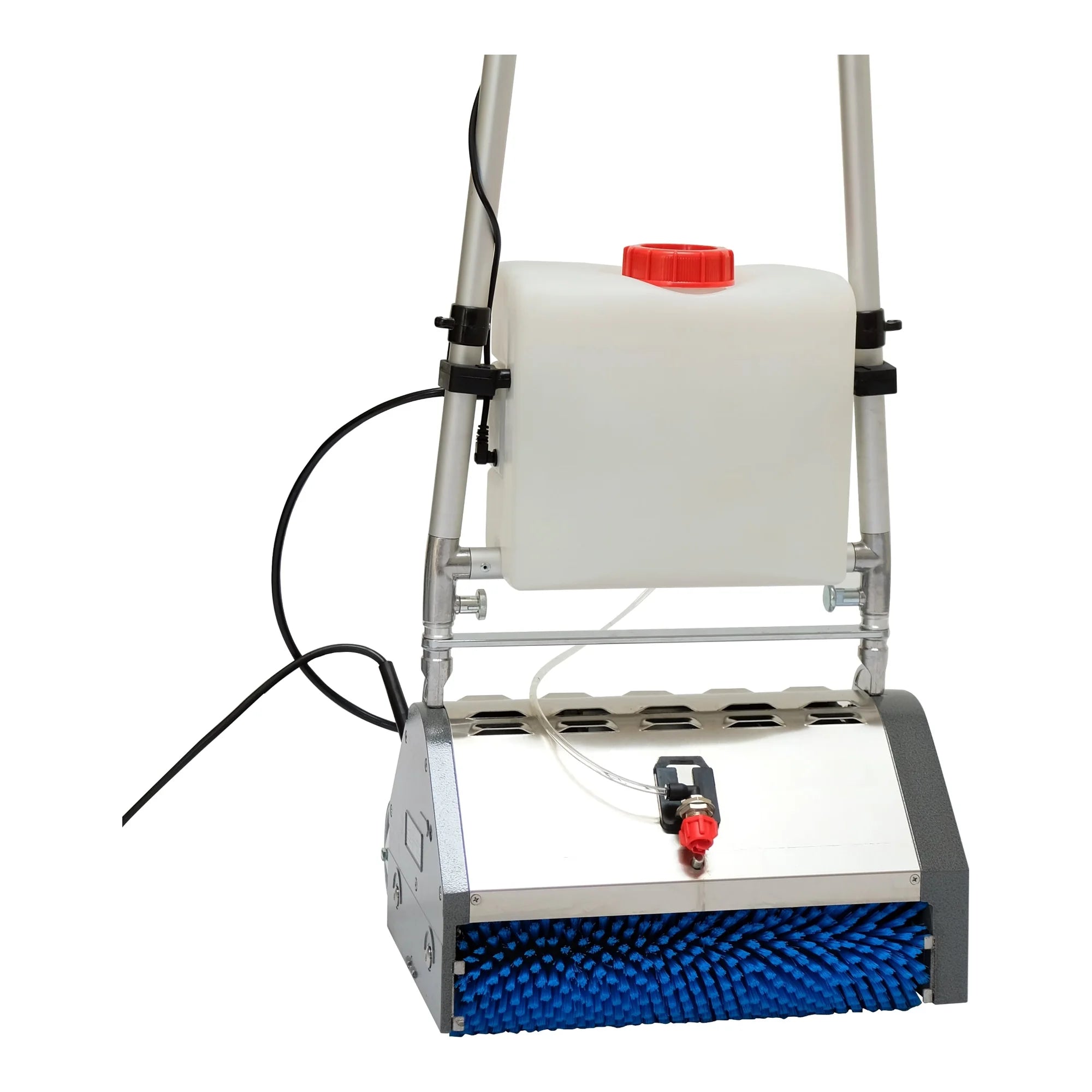

The kit replaces your machine's upper handle with one that carries a red spray button and its power cord. It also includes the spray tank with its electric pump, hose and two rubber mounting brackets, the spray mount and the spray nozzle. The tank clamps to the handle uprights, so the weight sits over the machine rather than on your operator's arm.
If your crew cleans large open carpet with encapsulation every week, yes. Taking a whole spraying pass off every job adds up fast. If you mostly run dry compound, or you clean small rooms and stairs with a TM3, a handheld sprayer still does the job, and the money is better spent on a spare set of brushes for your TM3, TM4 or TM5.
Watch the SPX in Action
SPX Onboard Sprayer Specifications
Specifications: SPX Onboard Sprayer
Brand
Carpet Cleaner America
Model
SPX
Origin
Made in Austria
Fits
TM4, TM5, PRO 35 and PRO 45 CRB machines (not the TM3)
Tank capacity
5.5 to 6 L (about 1.5 gal)
Pump
Electric
Spray pressure
Up to 55 psi (3.8 bar)
Flow rate
Up to 60 fl oz/min (1.8 L/min)
Spray tip
110 degree fan
Weight
5.5 lb (2.5 kg) without the handle
In the kit
Upper handle with spray button and power cord, tank with electric pump, hose and 2 rubber brackets, spray mount, spray nozzle
Machine
Not included
Not sure the SPX fits your machine? Send us a photo of the model plate, or call (855) 601-5678 or email support@oneupcleaning.com, and we'll confirm before you order.
Frequently Asked Questions
Does the SPX fit the TM3?
No. Carpet Cleaner America makes the SPX for the TM4, TM5, PRO 35 and PRO 45. The 10-inch TM3 can't take it.
Can I add the SPX to the TM4 or TM5 I already own?
Yes. The kit includes a replacement upper handle, the tank with its pump, brackets, mount and nozzle, so it retrofits an existing TM4 or TM5 as well as a new one.
What solution goes in the SPX tank?
An encapsulating prespray. Carpet Cleaner America's CC 300A mixes at 10 oz per gallon of water for encapsulation and 5 oz per gallon as a pre-spray before dry compound.
How much does the SPX tank hold?
About 1.5 gallons. Carpet Cleaner America lists 6 liters and the Austrian maker's catalog lists 5.5 liters.
Is the CRB machine included?
No. The SPX is the sprayer kit only. It mounts on a TM4, TM5, PRO 35 or PRO 45 you already own or buy with it.
