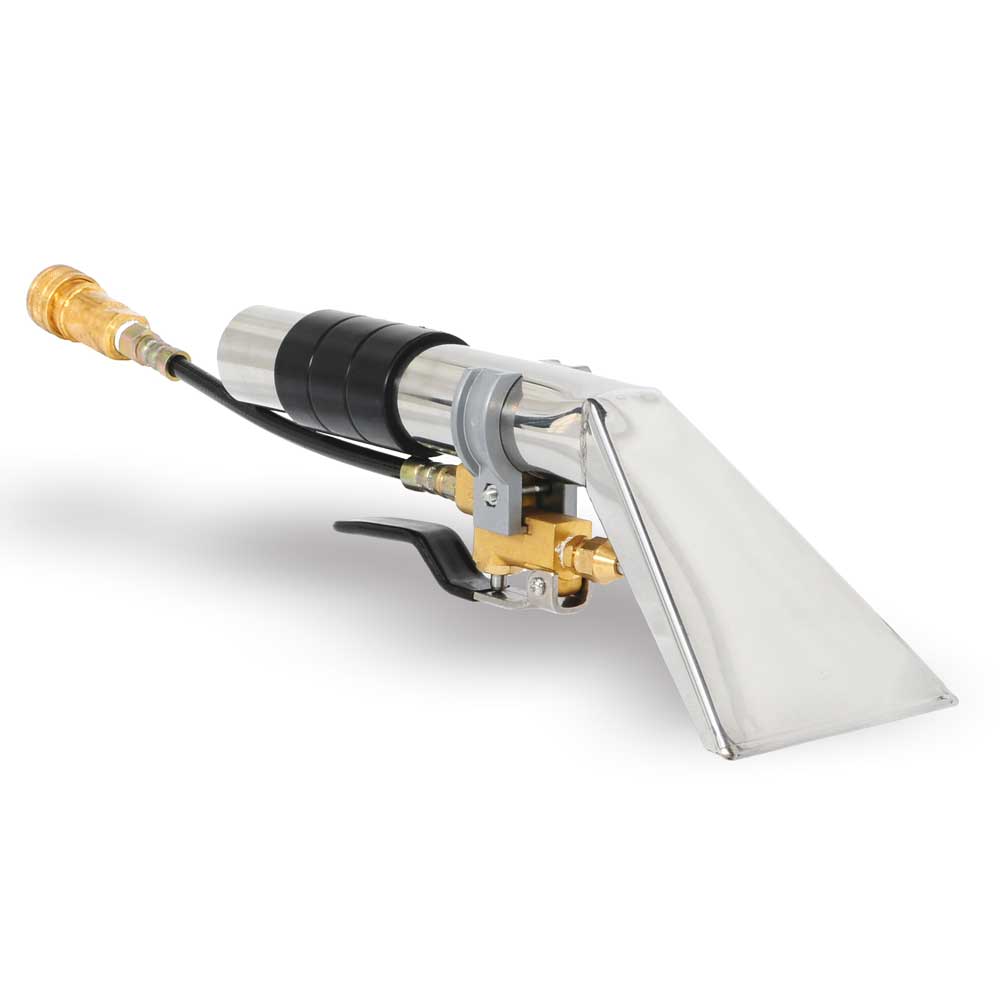

EDIC 1039-9502FB stainless steel upholstery and auto detailing tool, on white

EDIC® Stainless Steel Upholstery and Auto Detailing Tool, 4" Head, 11.5" Long, 1000 PSI #1039-9502FB

by EDIC
$128.00

Notify me when back in stock

Authorized Retailer EDIC
Ships within 2–4 Business Days
Estimated Delivery 6–9 Business Days
Financing Available at CheckoutBreak up your purchase into manageable monthly payments
No Sales Tax Tax-free in all states except Wyoming
Manufacturer Warranty IncludedEDIC standard limited warranty · Coverage backed directly by EDIC
Found a Lower Price? We'll Beat It. Call or send us a message and we'll beat any competitor's price.
(855) 601-5678  ·  support@oneupcleaning.com

Overview

  • Stainless steel upholstery and auto detailing tool, 4 in head, 11.5 in long, 1.7 lb
  • Rated to 1000 PSI, 1.5 in vacuum connection, corrosion-resistant
  • The tool EDIC ships with the Bravo kits and the Galaxy automotive extractors
  • Tool only; for a machine-only Bravo, the 839ACK kit adds the 8 ft hose

EDIC 1039-9502FB: The Stainless Upholstery Tool EDIC Ships With Its Bravo and Automotive Machines


When EDIC packs an upholstery tool with a machine, this is the one: the 1039-9502FB comes in the Bravo kits and with both Galaxy automotive extractors. It's all stainless steel, so it shrugs off drops on a shop floor, hot solution and harsh chemicals, and it's rated to 1000 PSI, enough for any Galaxy at full pressure.

The 4 in head sits on an 11.5 in body with a 1.5 in vacuum connection and a trigger valve. That extra length over a compact hand tool helps you reach the back of a seat, under a headrest or across a cushion without bending your wrist. It weighs 1.7 lb.

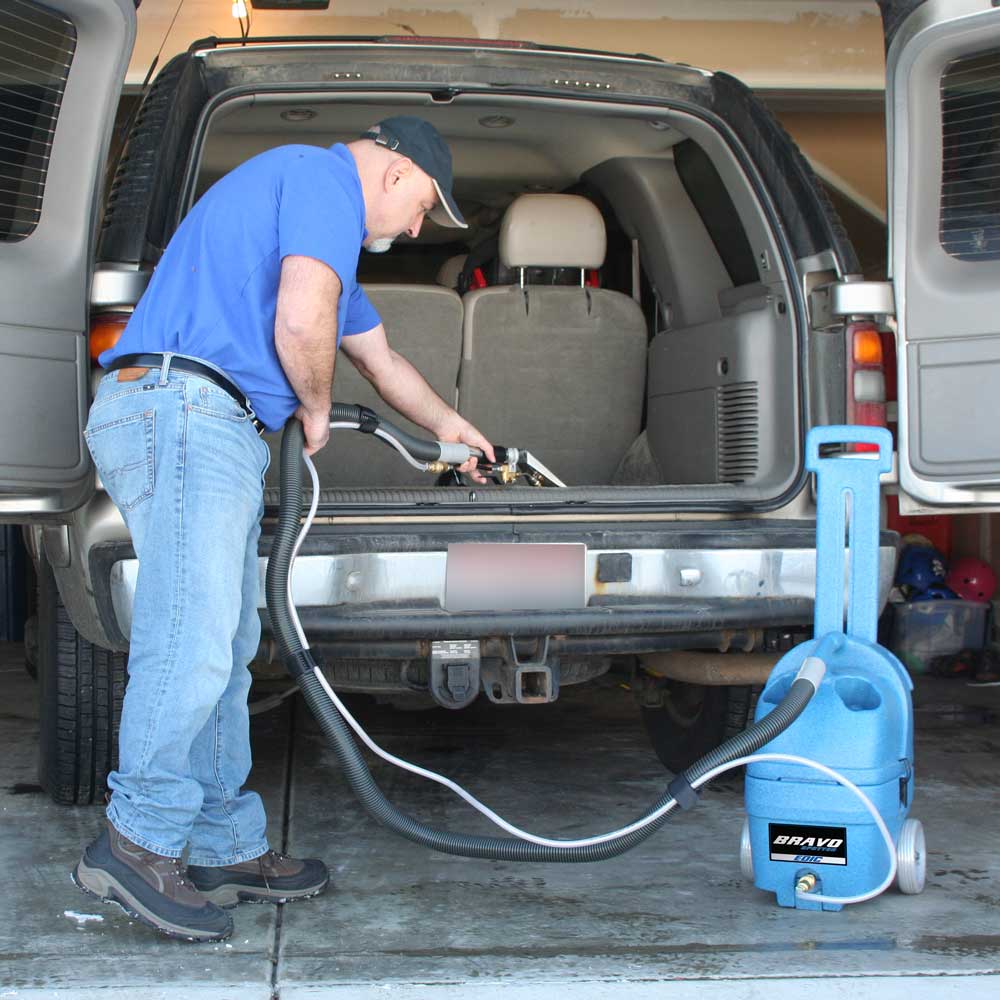

Cleaning car seats with the EDIC stainless upholstery tool on a Bravo spotter

Own a Bravo? Tool Only or the 839ACK Kit

  • Tool only, this page ($128): for anyone who already has a hose. It replaces the tool in a Bravo kit or on an automotive extractor, or adds a second tool to a Galaxy, Supernova or Polaris hose.

  • Machine-only Bravo (300MH)? You need a hose too. The 839ACK kit ($225) is this tool plus EDIC's 342AC 8 ft hose for the unheated Bravo.

  • Heated Bravo (339MH-HT or 300MH-HT-K)? Its hose is the 343AC, so order the tool only and message us if you need that hose.

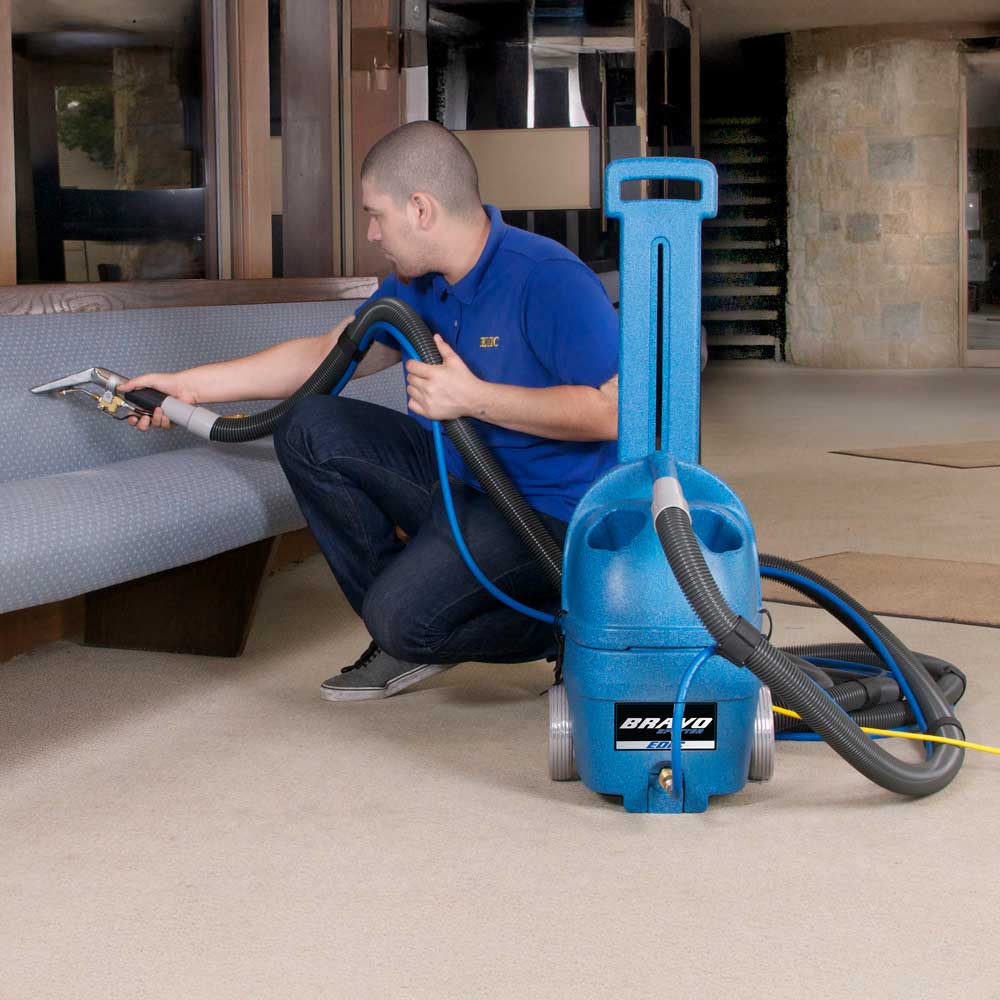

Cleaning a fabric bench with the EDIC stainless upholstery tool and Bravo spotter

EDIC Upholstery Tools Compared

1039-9502FB (this page) 321ACH 1037AC
Price $128 $262 $137
Head Open stainless steel Cast aluminum, glass window, enclosed spray chamber Clear plastic
Size 4 x 11.5 in, 1.7 lb 3.5 x 7 in, 1.5 lb 4 x 8 in, 1.3 lb
Pressure rating 1000 PSI 300 PSI 100 PSI
Hot solution Yes, ships with EDIC's heated machines No limit published by EDIC No, unheated only
Best for High pressure and heated machines, daily detailing Fine fabrics, seeing when to stop, low and mid pressure machines Occasional spotting on cold, low pressure machines

Detailing cars? Pair it with the 1038-8002FB crevice tool ($119) for seat tracks, console gaps and the space between cushions.

EDIC 1039-9502FB Specifications

EDIC® Stainless Steel Upholstery Tool Specifications
Brand EDIC
Model 1039-9502FB
Construction Stainless steel
Head Width 4 in
Length 11.5 in
Vacuum Connection 1.5 in
Pressure Rating Up to 1000 PSI
Tool Weight 1.7 lb
Shipping Weight 3 lb
Hose Not included (see the 839ACK kit for the Bravo)
Warranty EDIC standard limited warranty

Using it on an Endeavor? The tool is rated to 1000 PSI, so set the Endeavor's pump at 1000 PSI or below.

After each job, spray clean water through the tool for a few seconds so chemical doesn't dry in the jet.

Found a lower price? Call or message us and we'll beat it. Returns follow our return policy.

Questions about fit? Call (855) 601-5678 or message us your machine's model number.

Frequently Asked Questions

Does it come with a hose?

No, this is the tool only. It plugs into any EDIC 1.5 in vacuum hose with a quick disconnect solution line. If you own a machine-only Bravo (300MH), the 839ACK kit is this tool plus the Bravo's 342AC 8 ft hose.

I have a heated Bravo (339MH-HT or 300MH-HT-K). Is this the right tool?

Yes, the tool fits it. EDIC's hose for the heated Bravo is the 343AC, not the 342AC in the 839ACK kit, so if your hose needs replacing too, message us and we'll order the 343AC.

Which machines does the tool fit?

EDIC lists it as an optional tool for the Galaxy portables and the Galaxy automotive extractors, and it ships with the Bravo kits. It fits any EDIC 1.5 in vacuum hose with a quick disconnect solution line: the Galaxy 5, Galaxy 2000 and Galaxy Pro, the automotive extractors, the Bravo, the Supernova and Polaris on an accessory hose, and the Fivestar and Comet on the 341AC hose. On an Endeavor, keep the pressure at 1000 PSI or below.

Can I use it on a 500 PSI Galaxy?

Yes. EDIC rates it to 1000 PSI, so it works on the Galaxy 2000CX, Galaxy Pro CX and FX at full pressure. Move it a little faster than on a low pressure machine so you don't over-wet the fabric.

Stainless 1039-9502FB or the 321ACH with the window?

The stainless tool is longer (11.5 in), open, rated to 1000 PSI and shrugs off drops and heat. The 321ACH has an enclosed spray chamber and a glass window so you can watch the soil lift, but it's rated to 300 PSI. Detailers on high pressure or heated machines usually take the stainless tool.

Do I need a crevice tool too?

For cars, usually yes. The upholstery tool does seats and flat fabric; the 1038-8002FB crevice tool reaches seat tracks, console gaps and between cushions. EDIC lists both as automotive accessories.

What is the warranty?

EDIC's standard limited warranty covers defects in material and workmanship. Tools are wear items, so damage from use isn't covered. Call or message us with your order number and we'll handle any claim with EDIC.
