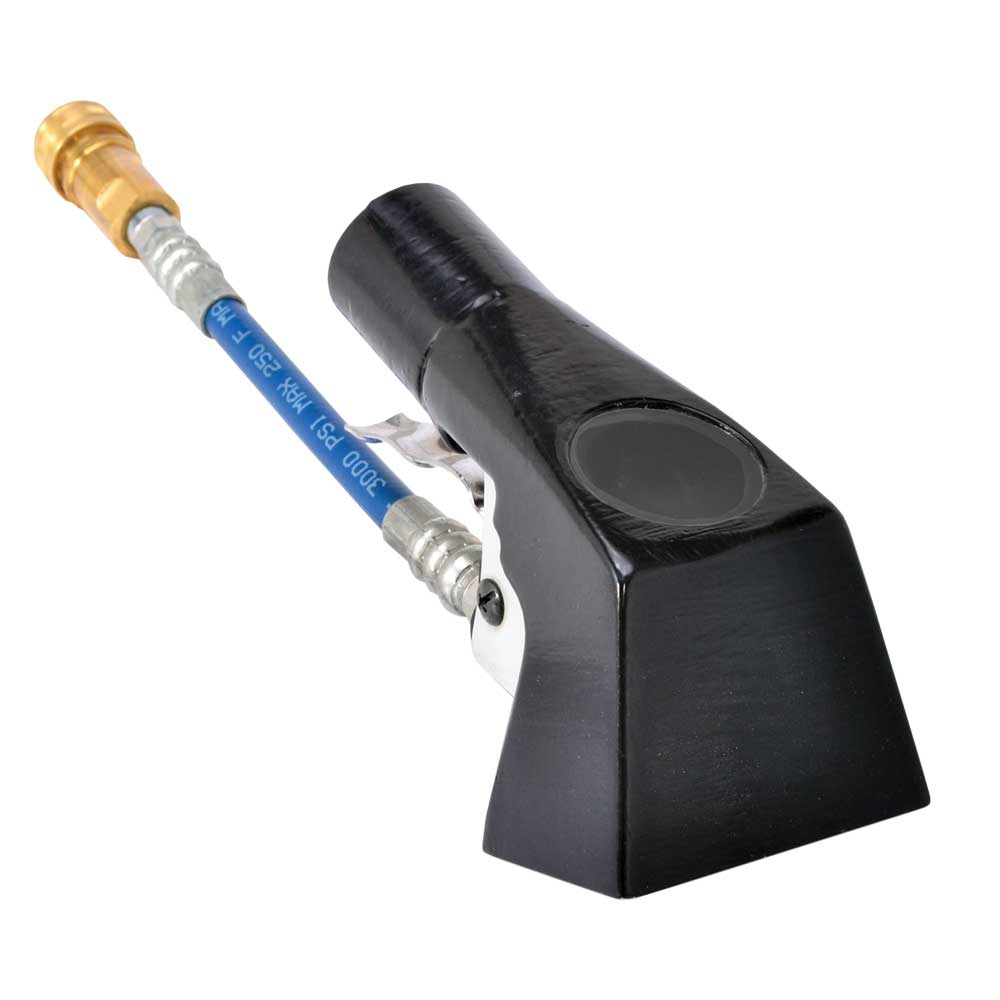

EDIC 321ACH black cast aluminum upholstery tool with solution pigtail, on white

EDIC® Upholstery and Auto Detailing Tool with Viewing Window, 3.5" Cast Aluminum, 300 PSI #321ACH

by EDIC
$262.00

Notify me when back in stock

Authorized Retailer EDIC
Ships within 2–4 Business Days
Estimated Delivery 6–9 Business Days
Financing Available at CheckoutBreak up your purchase into manageable monthly payments
No Sales Tax Tax-free in all states except Wyoming
Manufacturer Warranty IncludedEDIC standard limited warranty · Coverage backed directly by EDIC
Found a Lower Price? We'll Beat It. Call or send us a message and we'll beat any competitor's price.
(855) 601-5678  ·  support@oneupcleaning.com

Overview

  • 3.5 in cast aluminum upholstery tool with a glass viewing window
  • Enclosed spray chamber limits overspray; recirculating notches speed drying
  • Fits standard 1.5 in vacuum hoses, high pressure solution pigtail, rated 300 PSI
  • 1.5 lb; the same tool EDIC packs in its 357AC and 358AC upholstery kits

EDIC 321ACH: The Upholstery Tool That Shows You When the Fabric Is Clean

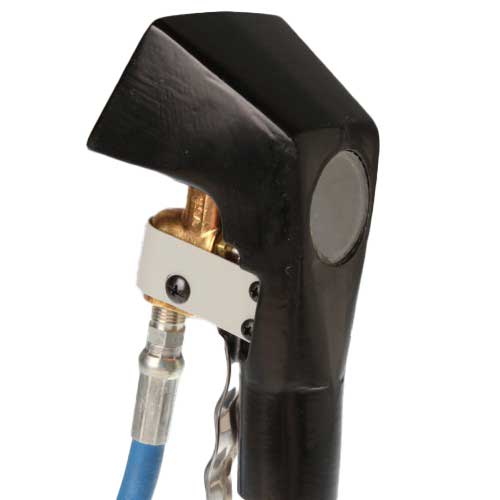

Over-wetting is the most common way upholstery cleaning goes wrong: extra passes, soaked foam, a chair that smells damp the next morning. The EDIC 321ACH is built to stop that. A round glass window on top of the head lets you watch the soil and water lift, so you quit the moment the water runs clear.

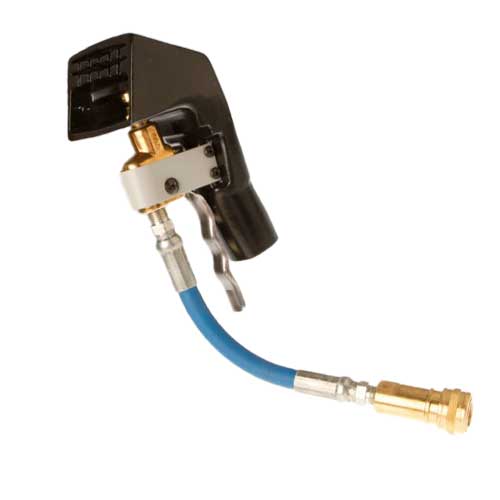

The head is cast aluminum with a black powder coat, 3.5 in wide and 7 in long. Inside, an enclosed spray chamber keeps the solution on the fabric under the tool instead of misting the cushions next to it, and recirculating notches stop water from pooling in the chamber, so the fabric dries faster. It weighs 1.5 lb, fits standard 1.5 in vacuum hoses, and its high pressure solution pigtail is rated to 300 PSI.

EDIC 321ACH black cast aluminum upholstery tool with solution pigtail

Which Machines It Fits

Any EDIC extractor with a 1.5 in vacuum hose and a quick disconnect solution line that runs at 300 PSI or less:

Running a 500 PSI Galaxy (2000CX, Pro CX or FX) or an Endeavor? Take the 1039-9502FB stainless tool ($128), rated to 1000 PSI.

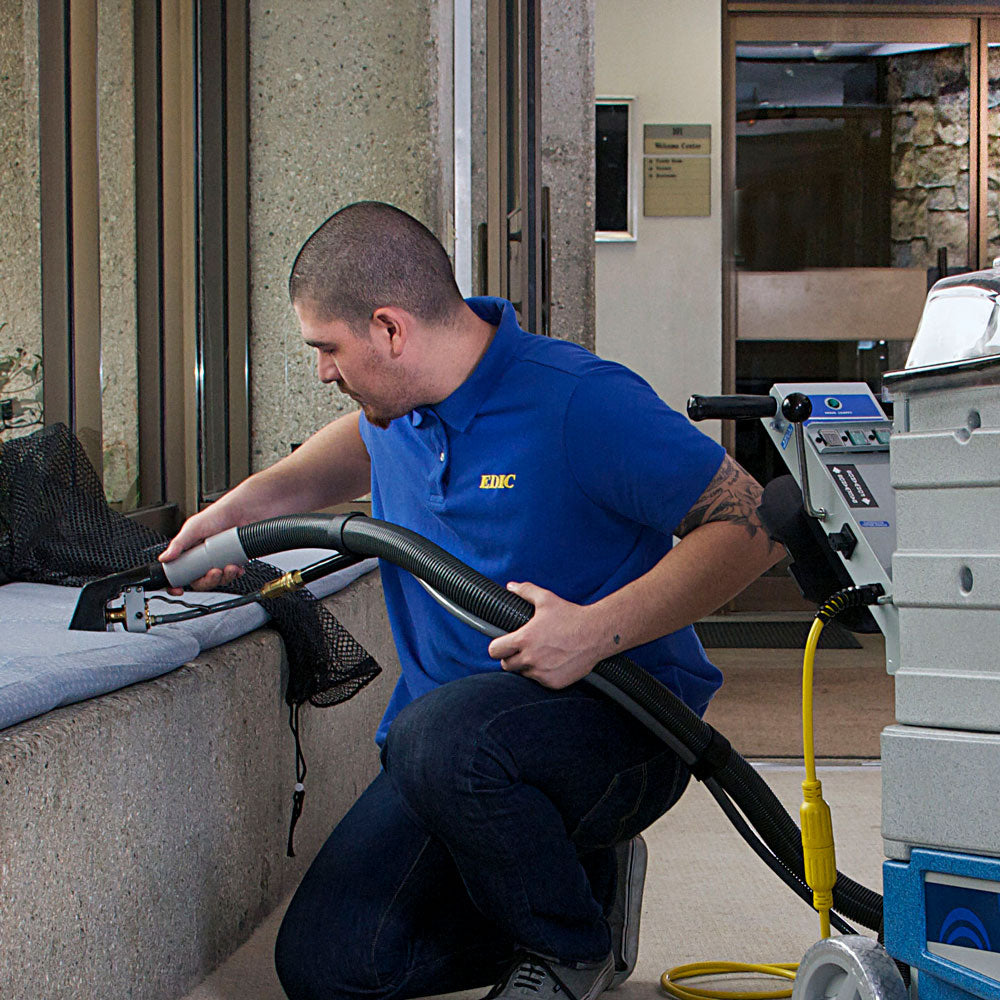

Cleaning a fabric bench with the EDIC 321ACH upholstery tool

EDIC Upholstery Tools Compared

321ACH (this page) 1039-9502FB 1037AC
Price $262 $128 $137
Head Cast aluminum, glass window, enclosed spray chamber Open stainless steel Clear plastic
Size 3.5 x 7 in, 1.5 lb 4 x 11.5 in, 1.7 lb 4 x 8 in, 1.3 lb
Pressure rating 300 PSI 1000 PSI 100 PSI
Hot solution No limit published by EDIC Yes, ships with EDIC's heated machines No, unheated only
Best for Fine fabrics, seeing when to stop, low and mid pressure machines High pressure and heated machines, daily detailing Occasional spotting on cold, low pressure machines

Detailing cars? Add the 1038-8002FB crevice tool ($119) for seat tracks and console gaps.

EDIC 321ACH Specifications

EDIC® 321ACH Upholstery Tool Specifications
Brand EDIC
Model 321ACH
Construction Cast aluminum, black powder coat, round glass window
Head Size 3.5 in wide, 7 in long, 1.5 in deep
Vacuum Connection 1.5 in
Solution High pressure hose with 8 in pigtail and quick disconnect
Pressure Rating Up to 300 PSI
Tool Weight 1.5 lb
Shipping Weight 3 lb
Hose Not included
Warranty EDIC standard limited warranty

Need the hose as well? EDIC packs this tool in two kits: the 357AC for the Fivestar and Comet ($307) and the 358AC for the Supernova and Polaris ($378).

After each job, spray clean water through the tool for a few seconds and wipe the window so it stays clear.

Found a lower price? Call or message us and we'll beat it. Returns follow our return policy.

Questions about fit? Call (855) 601-5678 or message us your machine's model number.

Frequently Asked Questions

Is it a 1.5 inch tool or a 3.5 inch tool?

Both numbers are right. EDIC's price list calls it a 1-1/2 in upholstery tool because it fits a 1.5 in vacuum hose. The head itself is 3.5 in wide and 7 in long.

Which machines does it fit?

EDIC extractors with a 1.5 in vacuum hose and a quick disconnect solution line, running 300 PSI or less: the Galaxy 5, the Galaxy 2000 SX and IX, the Galaxy Pro IX, the Bravo, the Galaxy automotive extractors, the Supernova and Polaris on an accessory hose, and the Fivestar and Comet on the 341AC hose. For the 500 PSI Galaxy CX and FX units and the Endeavor, choose the 1039-9502FB stainless tool, rated to 1000 PSI.

Does it come with a hose?

No. It has a short high pressure solution pigtail with a quick disconnect and plugs into the hose assembly you already have. If you need the hose too, EDIC sells the tool in two kits: the 357AC for the Fivestar and Comet and the 358AC for the Supernova and Polaris.

What does the viewing window do?

You see the soil and water lifting through the round glass window as you work. When the water runs clear, the fabric is clean, so you stop there instead of making extra wet passes. Less water in the fabric means faster drying.

321ACH or the stainless 1039-9502FB?

The 321ACH has an enclosed spray chamber, a viewing window and a 300 PSI rating, and it's the lighter tool at 1.5 lb. The 1039-9502FB is open stainless steel, 11.5 in long, rated to 1000 PSI, and it's the tool EDIC ships with the Bravo kits and the automotive extractors. Low pressure machines and fine fabrics favor the 321ACH; high pressure machines need the stainless tool.

What is the warranty?

EDIC's standard limited warranty covers defects in material and workmanship. Tools are wear items, so damage from use isn't covered. Call or message us with your order number and we'll handle any claim with EDIC.
