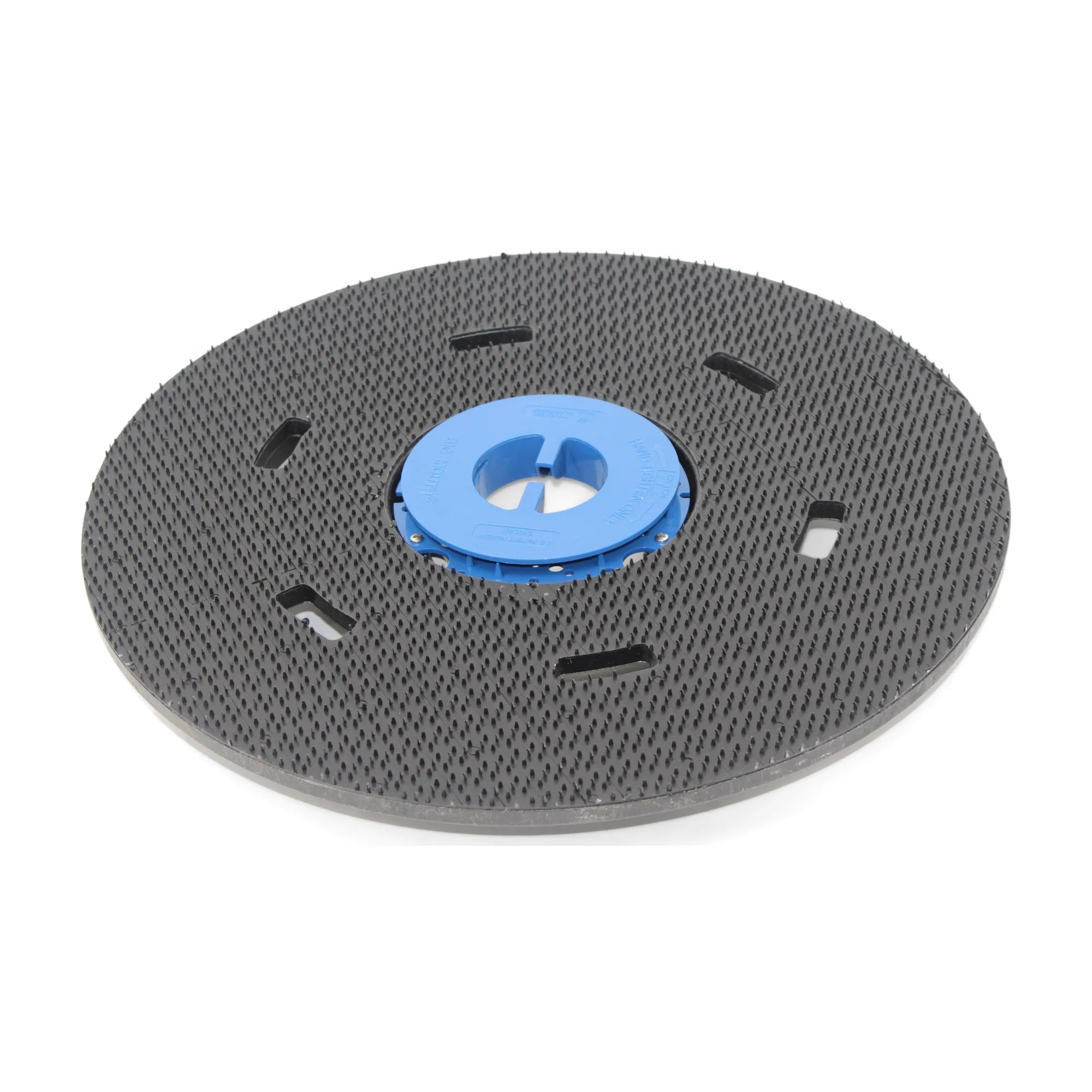

Clarke 19 inch pad holder for the CA60 disc models, gray gripper face with a blue center pad lock

Clarke 19" Pad Holder for the CA60 20D and 20TD Floor Scrubber, VS13777

by Clarke
$195.76

Notify me when back in stock

Authorized Retailer Clarke
Ships within 3–5 Business Days
Estimated Delivery 7–10 Business Days
Financing Available at CheckoutBreak up your purchase into manageable monthly payments
No Sales Tax Tax-free in all states except Wyoming
Manufacturer Warranty IncludedFull warranty coverage backed directly by Clarke
Found a Lower Price? We'll Beat It. Call or send us a message and we'll beat any competitor's price.
(855) 601-5678  ·  support@oneupcleaning.com

The Pad Holder That Drives Your CA60's Floor Pads

Every floor pad on your Clarke CA60 20D or 20TD rides on this pad holder. Its gripper face holds a standard 20-inch pad flat against the floor, and the center lock keeps the pad from walking off the holder while it spins. When the face wears smooth, pads start to slip and scrub unevenly, and that's the time to replace it.

VS13777 is the "pad holder 19 complete" in the CA60 disc deck parts list, so it's the holder Clarke designed for these machines. A second one also lets you keep two pad colors ready, for example a red pad for nightly scrubbing and a black pad for stripping, and swap them in seconds.

Why You'll Love This Pad Holder

  • Takes standard 20-inch pads. Red, blue, black or white, from any pad maker.

  • Center lock included. It's the complete assembly, so the pad stays centered.

  • Locks on with a button. The CA60 disc deck seats and releases the holder from the control panel.

  • Genuine Clarke part. The number listed in the CA60 operator manual and parts list.

How to Fit the Pad Holder

Center a 20-inch pad on the holder and lock it with the center lock. With the deck raised, slide the holder under the deck, lift it to engage the hub and turn it clockwise as seen from above. Lower the deck, press the OneTouch scrub button and hold one of the brush switches for half a second, and the machine seats it. To remove it, raise the deck and press the brush release button. The steps are in the CA60 Use and Care guide. Pad holders are wear items and aren't covered by Nilfisk's machine warranty.

Clarke VS13777 Pad Holder Specifications

Brand Clarke (Nilfisk)
Part Number VS13777
Type Pad holder (pad driver), complete with center lock
Holder Size 19 in
Pad Size 20 in floor pads
Fits Clarke CA60 20D and 20TD (disc models)
Does Not Fit CA60 20B and 24B (BOOST orbital)

For grout and textured floors, swap in the VF91040 disc scrub brush instead.

Not sure which part you need? Send us your machine model or serial number, call (855) 601-5678 or email support@oneupcleaning.com, and we'll confirm the fit before you order.

Frequently Asked Questions

What size pads does the VS13777 take?

Standard 20-inch floor pads. The holder itself is 19 inches, so the pad overhangs it slightly, which is normal.

Does it fit the CA60 BOOST models?

No. The 20B and 24B use a rectangular BOOST deck with its own 14 x 20 or 14 x 24 inch pads.

Is a pad holder included with the CA60 20D and 20TD?

Retailers list a pad holder as included with the disc models. This one is a replacement or a spare for a second pad color.

When should I replace it?

When the gripper face wears smooth and pads start slipping, or the center lock no longer holds the pad centered.
