EDIC® PTAC Cleaning Cradle, with Optional Galaxy Pro PTAC Extractor Kit
(855) 601-5678 · support@oneupcleaning.com
Here's the thing about PTAC units: they're everywhere (hotels, condominiums, apartments, hospitals, nursing homes, college dorms, and other public and Private facilities), they get filthy fast, and cleaning them usually involves heavy lifting, awkward angles, and a lot of frustrated maintenance staff. The EDIC® PTAC Cleaning Cradle changes all that.

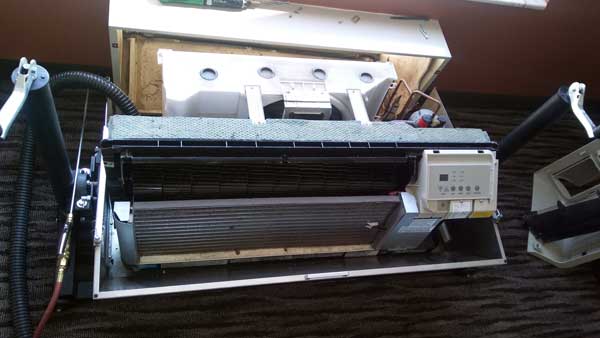

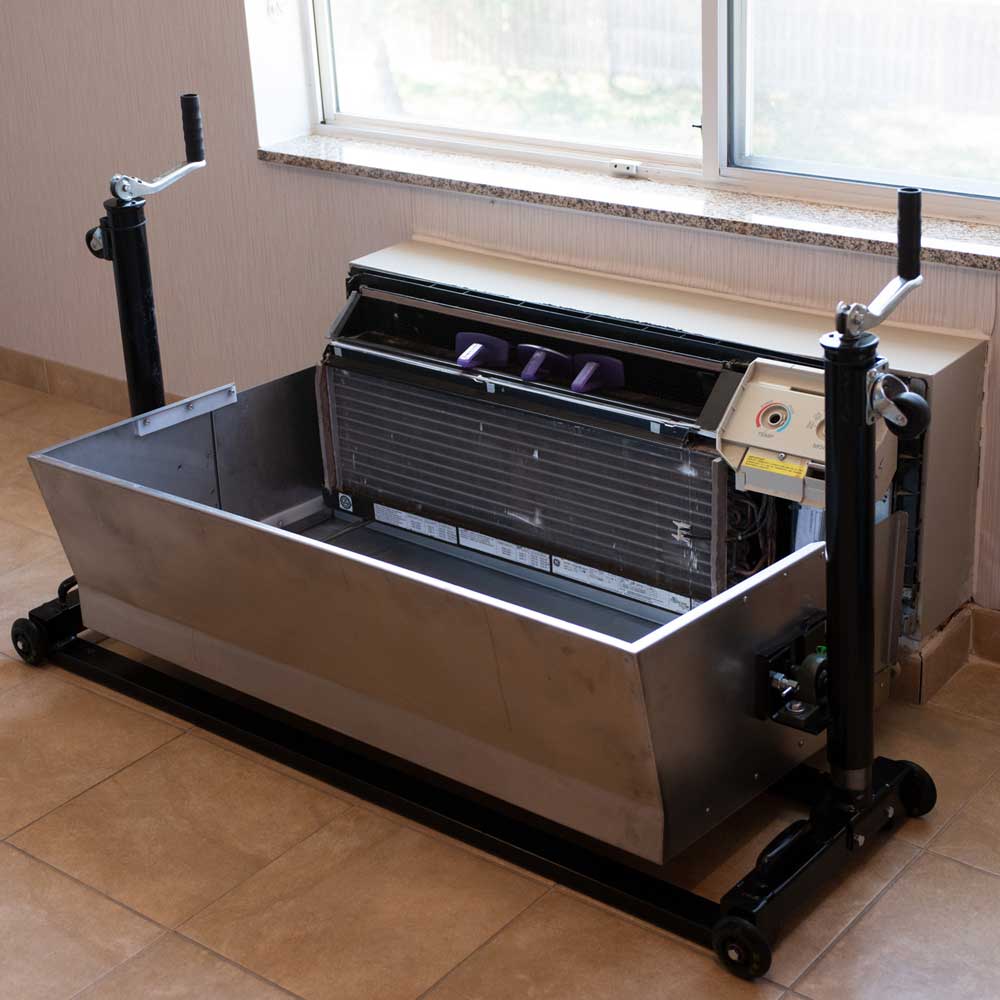

This patented cleaning system lets one operator deep clean any PTAC unit right in the room without removing it from the wall. No more wrestling with heavy units, no more teams of workers, no more room damage from disassembly. Just position the cradle, connect your extractor, and let the engineering do the work.
What makes this cradle brilliant is how it solves the real-world problems you face. It adjusts vertically from 2.5 to 16 inches off the floor, tilts in all directions to direct wastewater exactly where you need it, and works with any portable extractor you already own. Plus, it's built from durable stainless steel right here in the USA.
The result? Your PTAC units run more efficiently, last longer, and your indoor air quality improves dramatically. Property owners see lower energy bills and happier guests, while cleaning contractors can add a profitable new service without major equipment investment.

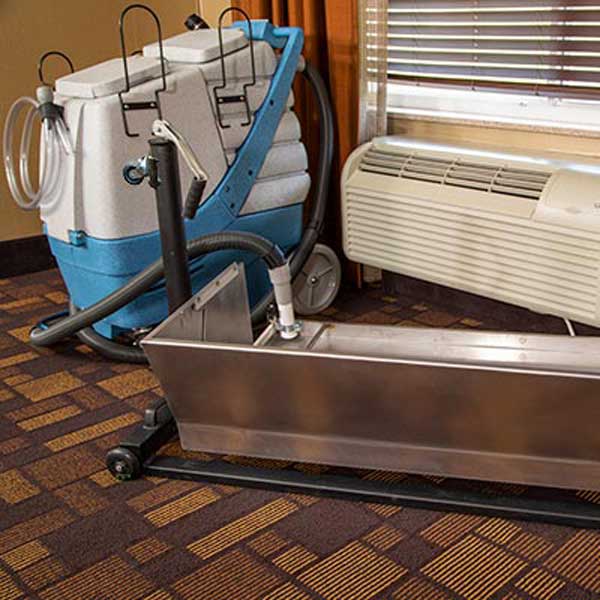

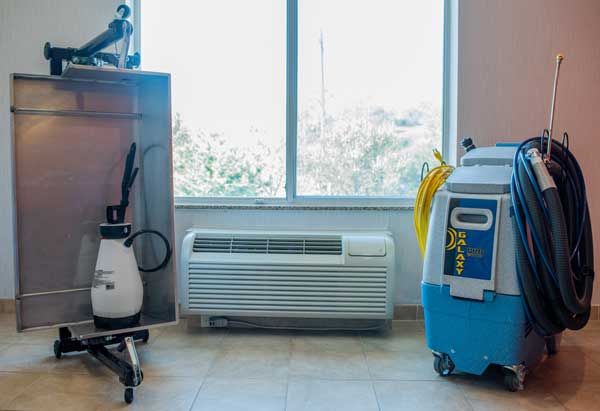

Don't have an extractor yet? EDIC's Galaxy Pro PTAC Extractor Kit is the matching machine, packaged with the hoses, wand and sink adaptor you need to feed the cradle. Pick it from the selector above; the two parts are explained below.
The cradle and the extractor are sold separately, and neither one includes the other. Here's how to order the right thing:
PTAC Cleaning Cradle (7000AC). The cradle only. Choose this if you already own a portable extractor with a solution pump and a wet/dry vacuum. Any brand works: you connect the extractor's vacuum hose to the cradle's clamp and use its spray wand to wash the coils.
Galaxy Pro PTAC Extractor Kit (2700IX-PTAC-K). The extractor only, no cradle. It's an EDIC Galaxy Pro 17-gallon box extractor with a 220 psi pump and a 3-stage vacuum, packaged for PTAC work: 25 ft vacuum hose, 35 ft solution line with quick disconnects, 50 ft power cord, 2 ft spray wand, sink fill adaptor, hose management kit and lockable front wheels. It's heat ready too, so you can add a Heat N Run heater later for hot-water coil cleaning.
Both. Starting from scratch? Add each option to your cart. The pair comes to $3,118 for the cradle plus $3,138 for the extractor kit, and you're set up to clean PTAC units in-room from the first day.
Why the Galaxy Pro and not a smaller machine? A PTAC coil takes a lot of rinsing, and the 17-gallon solution tank means you're not refilling halfway through a unit. The 15-gallon recovery tank and 138" of water lift pull the dirty water out of the cradle's pan as fast as you spray it in. The 220 psi pump is strong enough to flush the fins without bending them. If you already own a Galaxy 2000 or another box extractor, it will do the job; this kit just saves you sourcing the hoses and wand one by one.

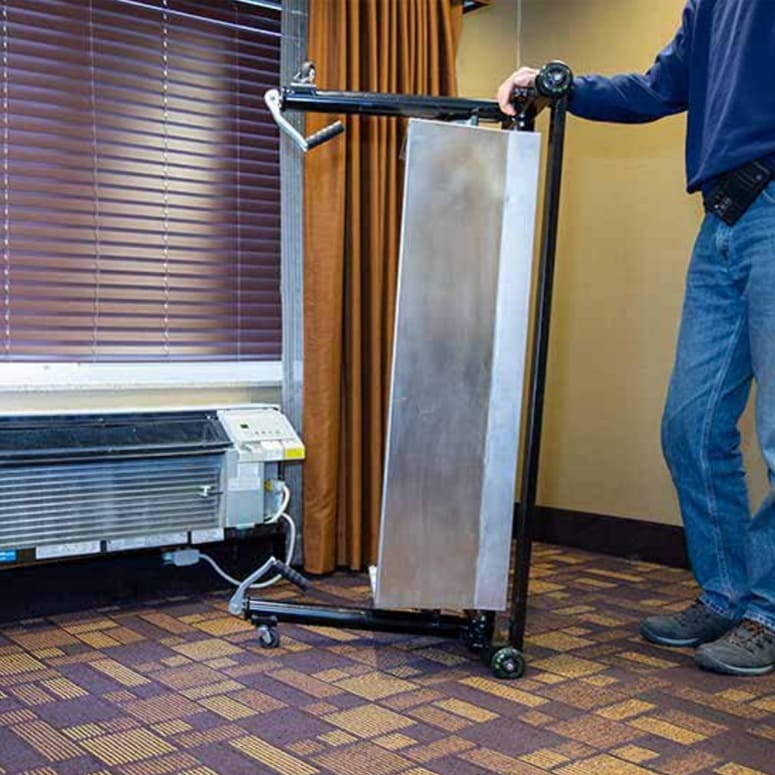

No more back-breaking removal or room damage. The cradle adjusts to any PTAC height and angle, letting you clean units in place with zero heavy lifting required.
One person handles what used to require a whole crew. The self-contained design means significant labor savings and faster turnaround times for your properties.
Works with the equipment you already have. Compatible with any portable extractor that pumps water and has wet/dry vacuum capability, so no massive equipment overhaul needed.
Delivers measurable results your guests will notice. Regular cleaning improves air quality, reduces energy consumption, and extends PTAC lifespan, translating to lower operating costs and higher satisfaction scores.
Universal compatibility: Works with any PTAC unit regardless of age or room placement

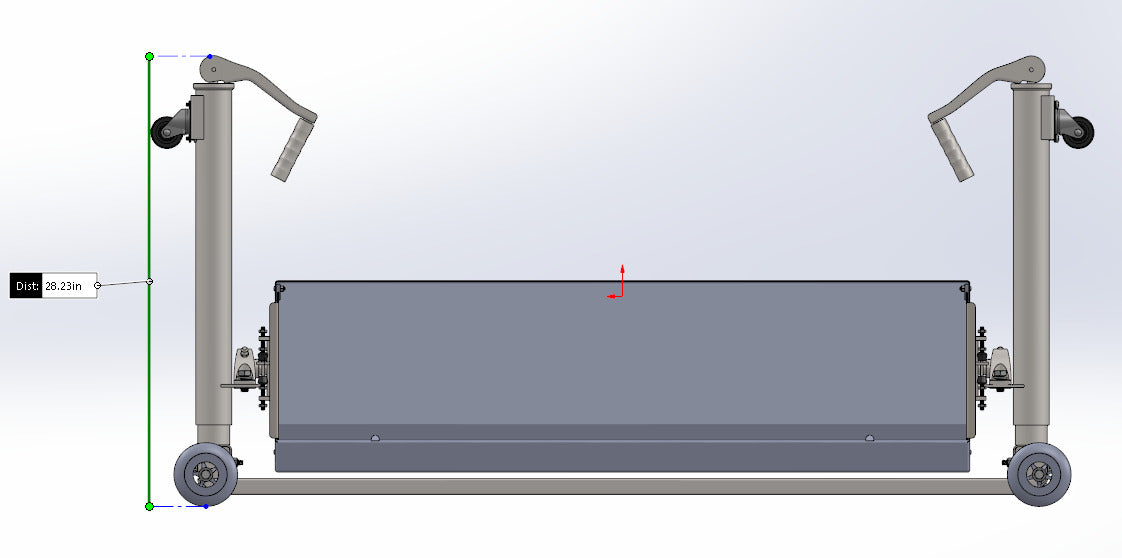

Adjustable height: Vertically adjusts from 2.5-16 inches off the floor
Multi-directional tilting: Forward/backward and left/right positioning for optimal wastewater removal
Durable construction: Stainless steel build, made in USA with minimal wear parts
Extractor compatibility: Works with any portable extractor with pump and wet/dry vacuum system
Green technology: Reduces energy consumption, prevents mold/fungus, extends PTAC lifespan
| Specifications - EDIC PTAC Cleaning Cradle (7000AC) | |
|---|---|
| Brand | EDIC |
| Model | 7000AC |

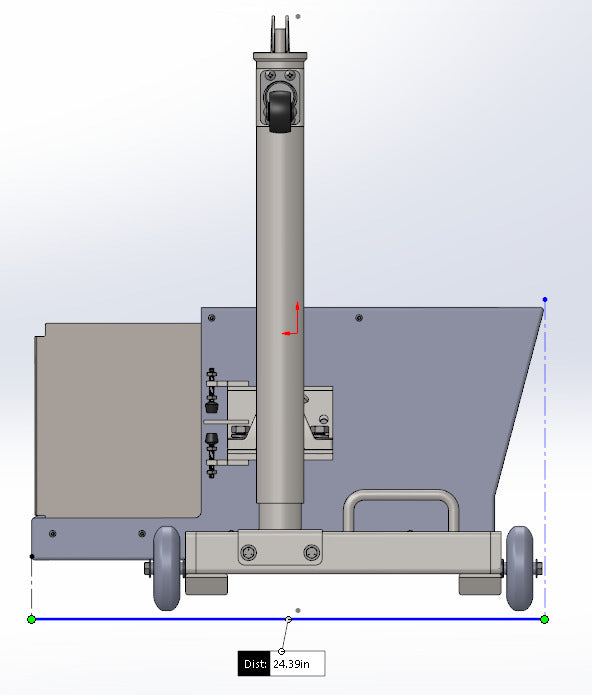

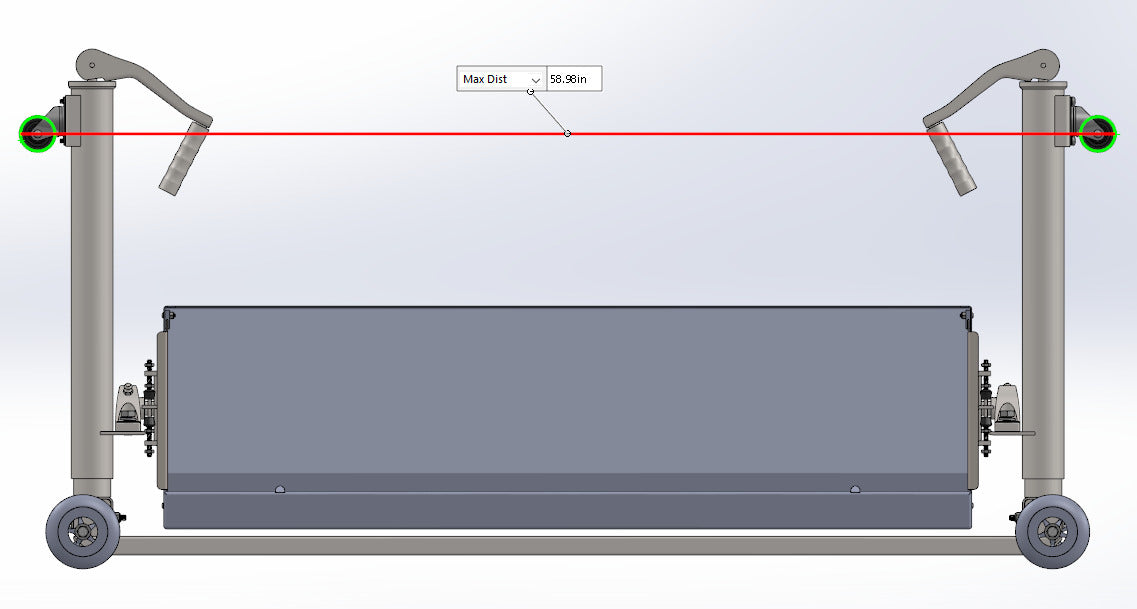

| Dimensions | 56″L x 24.5″W x 29″H |
| Weight | 105 lbs. |
| Construction Material | Stainless Steel & Steel |

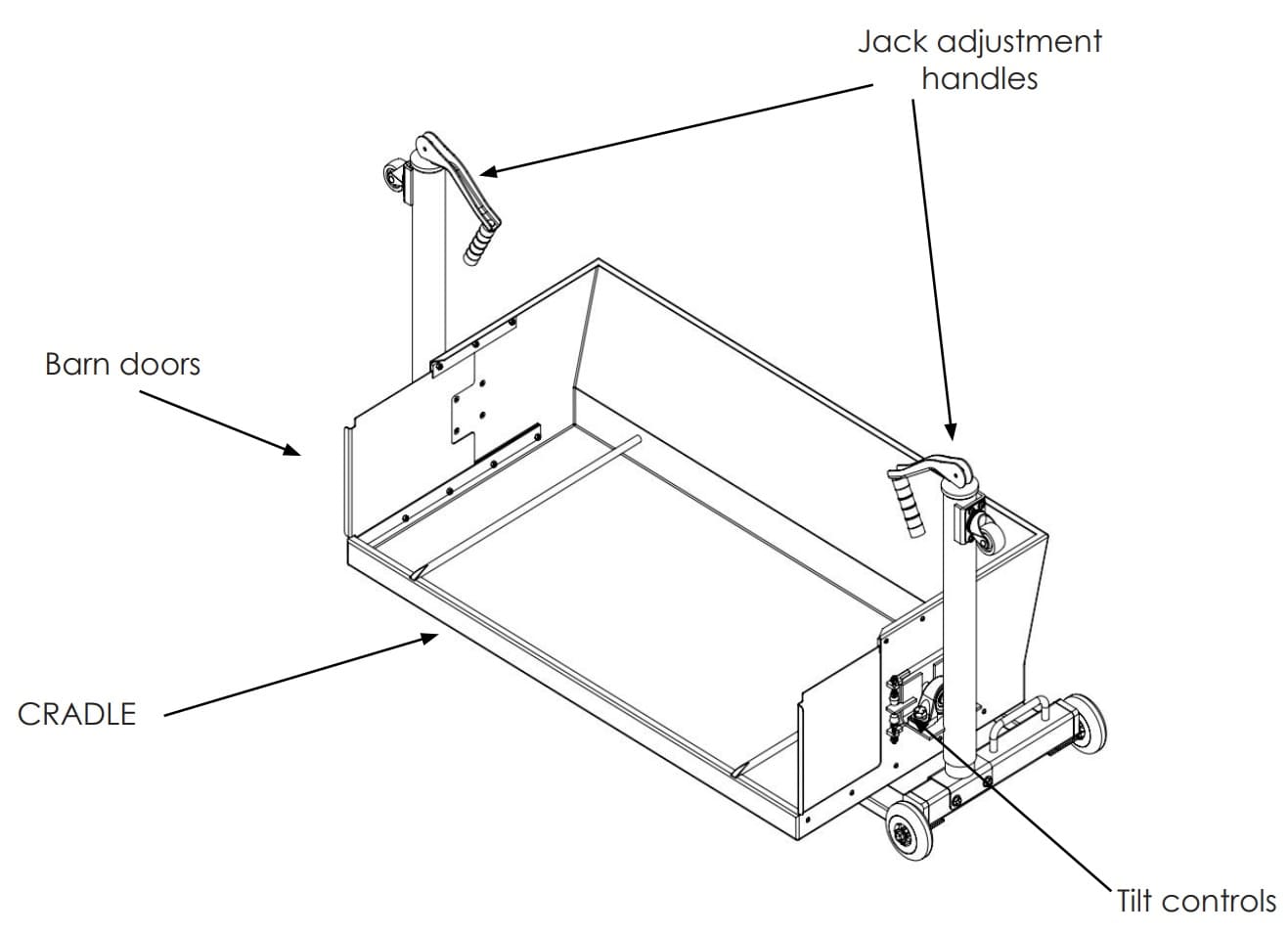

| Built-In Jacks | Dual, for adjusting up and down and left and right. From 2.5” up to 16” vertical adjustment |

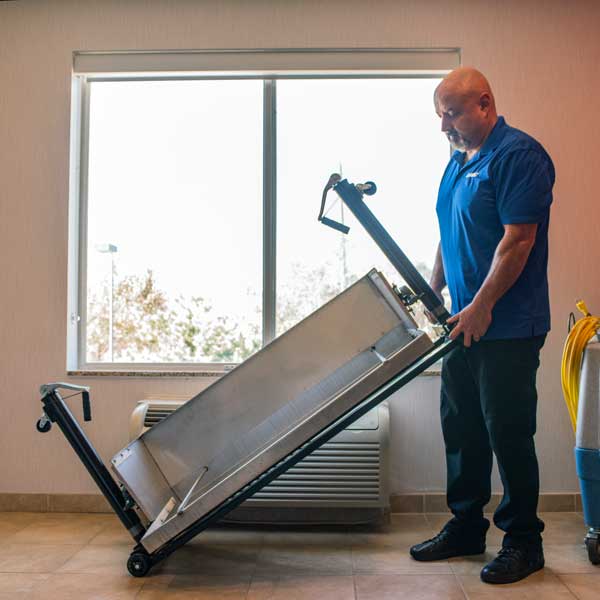

| Tilt | Quick pin release for tilting the cradle forward or backward |
| Casters | On both jacks for easy transport |
| Vacuum Connect | Clamp accessory for vacuum hose |
| Shipping Dimensions | Ships in 3 boxes |
| Shipping Box 1 (Pan) | 47 lbs. – 45.50”L x 24.25”W x 12.75”H |
| Shipping Box 2 (Base) | 36 lbs. – 58”L x 19.75”W x 7”H |
| Shipping Box 3 (Jacks) | 39 lbs. – 30”L x 20.5”W x 7”H |
| Warranty | 5 year parts & labor |
| Specifications - EDIC Galaxy Pro PTAC Extractor Kit (2700IX-PTAC-K) | |
|---|---|
| Brand | EDIC |
| Model | 2700IX-PTAC-K (Galaxy Pro extractor, cradle not included) |
| Solution Tank | 17 gallon |
| Recovery Tank | 15 gallon |
| Solution Pressure | 220 psi |
| Vacuum Motor | Single 3-stage |
| Water Lift | 138″ |
| Tank Construction | Polyethylene |
| Baseplate | ¼” Aluminum |
| Rear Wheels | 10″ non-marking |
| Casters | 4″, lockable front wheels |
| Power Cord | 50′ detachable |
| Vacuum Hose | 25′ |
| Solution Line | 35′ with quick disconnects |
| Spray Wand | 2′ wand, included |
| Sink Fill Adaptor | Included |
| Hose Management Kit | Included |
| Heat Ready | Yes, accepts the EDIC Heat N Run external heater |
| Electrical Draw | 14.1 amps |
| Dimensions | 38″H x 31″L x 20″W |
| Weight | 95 lbs. (111 lbs. shipping) |
| Shipping Dimensions | 40.5″H x 39″L x 21″W |
| Warranty | 5 year parts & labor |
Not sure whether your current extractor is up to the job? Message us or call (855) 601-5678 with the make and model, and we'll tell you whether the cradle alone will do or whether the Galaxy Pro kit makes sense.
No. The kit (2700IX-PTAC-K) is the extractor and its hoses, wand and adaptor only, and the cradle (7000AC) is the cradle only. If you're starting from scratch, add both options to your cart.
Yes. The cradle works with any portable extractor that has a solution pump and a wet/dry vacuum, whatever the brand. You clamp the extractor's vacuum hose to the cradle's drain and use the extractor's spray wand on the coils. Send us your machine's make and model if you'd like us to confirm it's a good fit.
An EDIC Galaxy Pro 17-gallon box extractor with a 220 psi pump and a 3-stage vacuum (138" water lift), plus a 25 ft vacuum hose, a 35 ft solution line with quick disconnects, a 50 ft detachable power cord, a 2 ft spray wand, a sink fill adaptor, a hose management kit and lockable front wheels. It's heat ready for the EDIC Heat N Run external heater.
$3,118 for the cradle and $3,138 for the Galaxy Pro PTAC Extractor Kit, each as its own line in your cart.
In three boxes: the pan (47 lb), the base (36 lb) and the jacks (39 lb), 122 lb in all. The extractor kit ships in one 111 lb box, 40.5 x 39 x 21 inches.
Both are covered by EDIC for 5 years parts and labor. The extractor's rotationally molded polyethylene tanks also carry EDIC's lifetime warranty.
