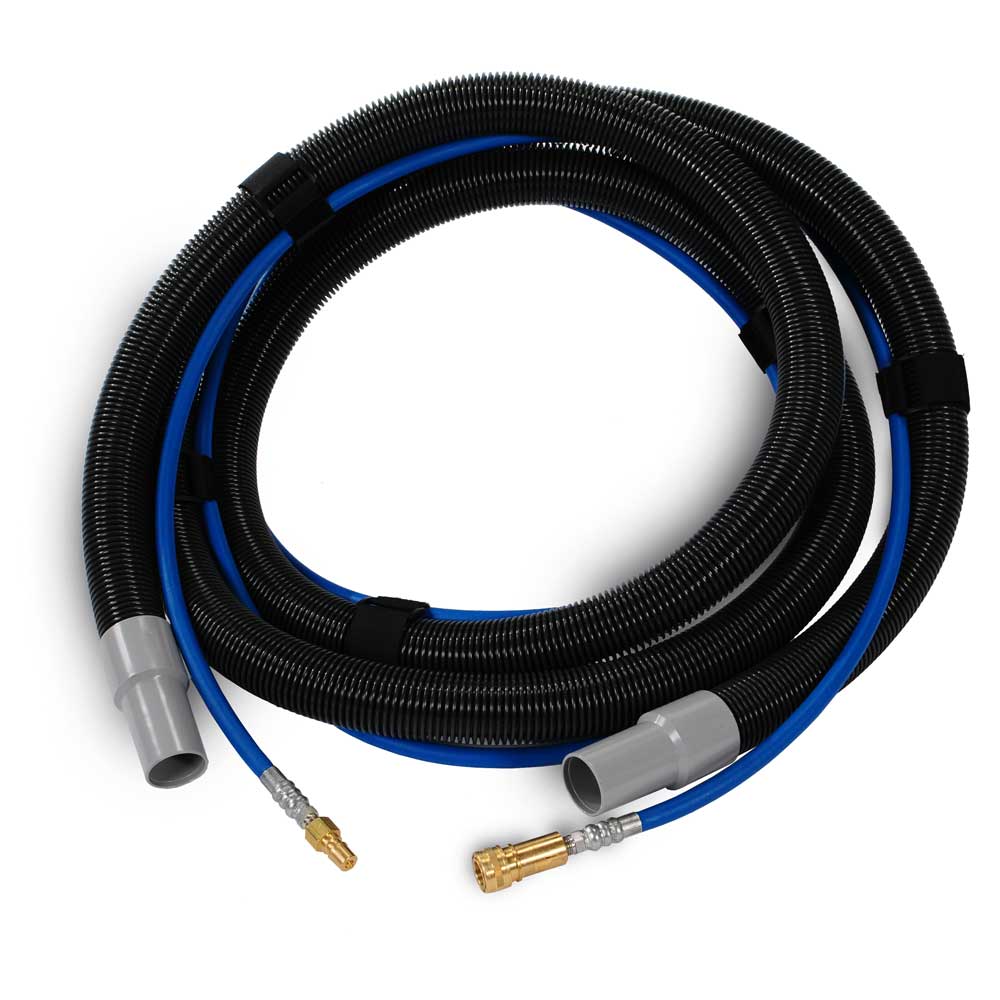

The hose takes more abuse than any other part of a carpet extractor. It gets dragged over thresholds, pinched under chair legs and coiled up wet at the end of every shift. When yours cracks at a cuff or starts weeping at a quick disconnect, this is the genuine EDIC replacement for the Galaxy 5, Galaxy 2000 and Galaxy Pro: a 1-1/2 inch crush-proof vacuum hose and a high-pressure, high-heat solution line, banded together so the pair moves as one.
Choose the reach your jobs need: the 15 ft 1040AC-HP at $142, the 25 ft 2540AC-HP at $202, or the 50 ft 5040AC-HP at $340. Every length has gray vacuum cuffs that slide onto your Galaxy's recovery inlet and brass quick disconnects that click onto the pump outlet and your wand. No tools, no adapters.
15 ft (1040AC-HP). Right for hotel rooms, offices and apartments, where the extractor can sit in the doorway. The short run keeps the most suction and the hottest water at the wand. It is the hose in EDIC's 15 ft wand kits.
25 ft (2540AC-HP). The everyday length. It ships in EDIC's 25 ft wand kits and heated Galaxy kits, and it is the hose EDIC lists for the Endeavor multi-surface cleaner. Big enough to clean a classroom or a conference room from one spot.
50 ft (5040AC-HP). For stairwells, hotel corridors and sanctuaries, where the machine has to stay in the hallway or at the foot of the stairs. Every extra foot of hose costs a little suction and a little heat, so use it where the reach matters more than the last bit of recovery.
Need more than 50 feet? EDIC's J00630 hose extender joins two vacuum hoses, and the solution lines connect at their quick disconnects. Ask us and we'll add it to your order.
EDIC uses a different hose on almost every machine family, so check this before you order:
| Your EDIC machine |
Hose assembly |
|
Galaxy 5 (500BX-HR), Galaxy 2000 (SX, IX, CX), Galaxy Pro 2700 (IX, CX, FX) |
This page: 1040AC-HP, 2540AC-HP or 5040AC-HP |
|
Endeavor (9000i-HS, 9000i-HSH) |
2540AC-HP, the 25 ft hose EDIC lists for the Endeavor |
| Supernova, Polaris |
1041AC or 2541AC with adapter plate |
| Fivestar, Comet |
341AC (8 ft) or 341AC-15 (15 ft) |
| Galaxy 5 Automotive, Galaxy Auto 3000 |
1040AC-HPB |
|
Bravo spotter |
342AC, or 343AC on heated units (8 ft) |
Running a 500 PSI Galaxy? It's the same hose. EDIC builds its 100 to 250 PSI and 500 PSI wand kits around the same 2540AC-HP; only the spray tips in the wand change. Not sure what you own? Send us the model number from the serial plate or a photo of your hose fittings, or call (855) 601-5678, and we'll match it before you order.
Crush-proof 1-1/2 inch vacuum hose. Doors close on it and carts roll over it, and it keeps its bore, so your Galaxy's waterlift arrives at the wand head.
High-pressure, high-heat solution line. EDIC dealers list it at 3,000 psi, six times the Galaxy CX's 500 psi pump, and it takes hot water from a Heat N Run heater without softening.
Brass quick disconnects at both ends. Click on, click off, and they match every EDIC carpet wand, stair wand and upholstery tool.
Three lengths that join together. 15, 25 or 50 feet, and two assemblies link with a J00630 extender when a job needs more.
Made for the machine. It's the hose EDIC packs with its own Galaxy kits, so the cuffs fit your inlet barb without tape or clamps.
Run a gallon of clean hot water through the solution line at the end of each day so chemical doesn't crystallize in the quick disconnects. Hang the assembly in loose coils instead of folding it, and drain it before a cold night in the van. Wear gloves when you break a heated connection, because the brass fittings hold hot water. A vacuum hose that has kinked for good or a cuff that has torn is worth replacing right away: a leak on the vacuum side costs suction and dry time on every job after it.
| EDIC® Galaxy Vacuum and Solution Hose Assembly Specifications |
|---|
| Brand |
EDIC |
| Models |
1040AC-HP (15 ft), 2540AC-HP (25 ft), 5040AC-HP (50 ft) |
| Length |
15 ft (4.6 m), 25 ft (7.6 m) or 50 ft (15.2 m) |
| Vacuum Hose |
1-1/2 in (38 mm) crush-proof, cuffs on both ends |
| Solution Line |
High pressure, high heat, brass quick disconnects; listed at 3,000 psi by EDIC dealers |
| Fits |
EDIC Galaxy 5 (500BX-HR), Galaxy 2000 (2000SX-HR, 2000IX-HR, 2000CX-HR), Galaxy Pro 2700 (2700IX-HR, 2700CX-HR, 2700FX-HR); 2540AC-HP also fits the Endeavor |
| Wand |
Not included |
| Warranty |
EDIC replacement parts: 30 days |
Need a wand too? The stainless EDIC Glidemaster (from $266) and the lightweight aluminum EDIC Triton ($790) click straight onto this hose, and the stair and van wand handles the steps.
Buying the wand and the hose together? EDIC sells them as kits for less than the two separately: the Glidemaster with hose from $396 and the Triton with hose from $922. Pick With 15 ft hose or With 25 ft hose on the wand page.
Found a lower price? Call or message us and we'll beat it. Returns follow our return policy.
Add the length you need to your cart, or message us your machine's model number and we'll confirm the fit first.
