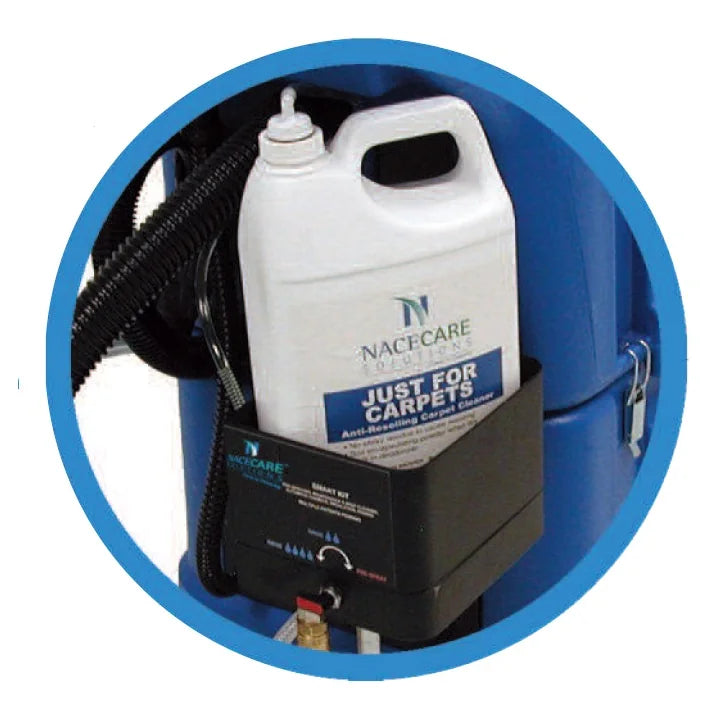

NaceCare Smart Kit chemical holder carrying a jug of carpet chemical on the side of an extractor

NaceCare Smart Kit Pre-Spray System for Carpet Extractors (K-8020280C)

by NaceCare
$1,268.85 + free shipping

Notify me when back in stock

Authorized Retailer NaceCare
Ships within 2–4 Business Days
Estimated Delivery 7–10 Business Days
Financing Available at CheckoutBreak up your purchase into manageable monthly payments
No Sales Tax Tax-free in all states except Wyoming
Manufacturer Warranty IncludedFull warranty coverage backed directly by NaceCare
Found a Lower Price? We'll Beat It. Call or send us a message and we'll beat any competitor's price.
(855) 601-5678  ·  support@oneupcleaning.com

What's in the kit:

  • Spray gun and pre-spray hose
  • Chemical dispensing system with chemical box bracket
  • Hose holder, brackets and mounting hardware
  • Low-moisture jets for the 3-jet wand and plastic hand tool

The NaceCare Smart Kit: Onboard Pre-Spray for Your Carpet Extractor


Pre-spraying with a pump-up sprayer means mixing chemical in a bucket, guessing the dilution and refilling every few minutes. The NaceCare Smart Kit turns your extractor into its own pre-spray system: a hose and spray gun that run off the machine's pump, and a chemical dispenser that meters the product for you.

Because the chemical is injected after the pump, only clean water goes through the pump and nothing builds up inside it. You fill the solution tank with water and keep the chemical in its own bottle.


Three Modes on One Valve

  • Pre-spray. Turn the valve to pre-spray and work the gun over traffic lanes and spots before you extract.

  • Restorative. Full flow through the wand or spray bar for deep cleaning.

  • Maintenance. Low flow for interim cleaning, so carpets dry faster. The kit includes low-moisture jets: 3 green for the 3-jet wand and 1 yellow for the plastic hand tool.

That low-moisture mode is a real reason to buy it. Interim cleaning between deep cleans keeps carpet looking good for longer, and offices reopen sooner.


Which Extractors Does the Smart Kit Fit?

Buying one of these machines new? Each page sells it with the Smart Kit as a package for the same price as buying both. The AVB 9X manual also mentions the Smart Kit as an option, so call us before ordering for that machine.

Not sure which one fits your machine? Send us the model, or call (855) 601-5678, and we'll check it for you.


The Owner's Insights on Installing It

If your machine already has the mounting bracket, the install takes a socket wrench, an Allen key and a screwdriver. If yours doesn't have the bracket, you'll drill through the top tank and fit two rivets, with a washer held inside the tank. That needs a rivet gun, a drill and a 1/8-inch bit, and some patience. The installation guide below shows every step with photos, so look at it before you order.

NaceCare also sells a low-moisture spray bar (8020285) and a full bracket kit (8020283) separately. Ask us if you need either.


Specifications: NaceCare Smart Kit Pre-Spray System
Brand NaceCare
Part Number K-8020280C (guide part number 8020280)
Type Onboard pre-spray and chemical dispensing kit
In the Kit
Contents Spray gun, pre-spray hose, chemical dispensing system, chemical box bracket and hardware, hose holder with bracket and hardware, low-moisture jets
Low-Moisture Jets 3 green (3-jet wand), 1 yellow (plastic hand tool)
Installation
Tools 10 mm socket or wrench, long Phillips screwdriver, 5 mm Allen wrench; rivet gun, drill and 1/8 in bit only if the machine has no bracket
Modes Pre-spray, restorative, maintenance (low moisture)
Fits
Machines TP 18SX, AV 12QX, AV 18SX, AV 18AX

Downloads

NaceCare Smart Kit Installation and Use Guide (PDF, 0.3 MB)
NaceCare Smart Kit Storage Procedure (PDF, 0.2 MB)

Frequently Asked Questions

What does the Smart Kit do?

It turns your extractor into its own pre-spray system. A gun and hose run off the machine's pump, and a dispenser meters chemical straight from the bottle, so there's no mixing and the dilution is always the same.

Does chemical go through the pump?

No. The chemical is injected after the pump, so only clean water passes through it and nothing builds up inside.

Which machines does it fit?

NaceCare lists it for the TP 18SX box extractor and the AV 12QX, AV 18SX and AV 18AX walk-behinds. The AVB 9X manual mentions it as an option too, so call us before ordering for that machine.

Is it hard to install?

If the machine already has the mounting bracket, it takes a socket wrench, an Allen key and a screwdriver. Without the bracket, you'll need to drill the top tank and fit two rivets. The installation guide on this page shows every step.
