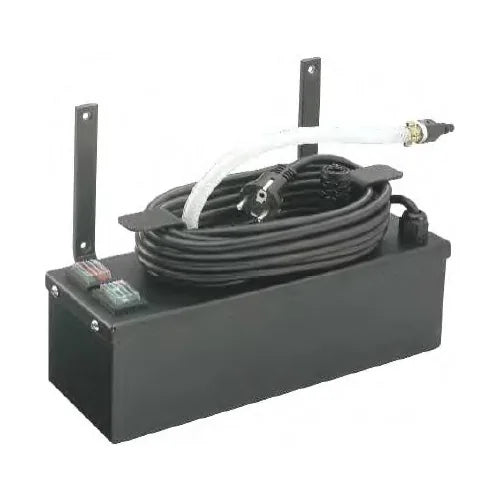

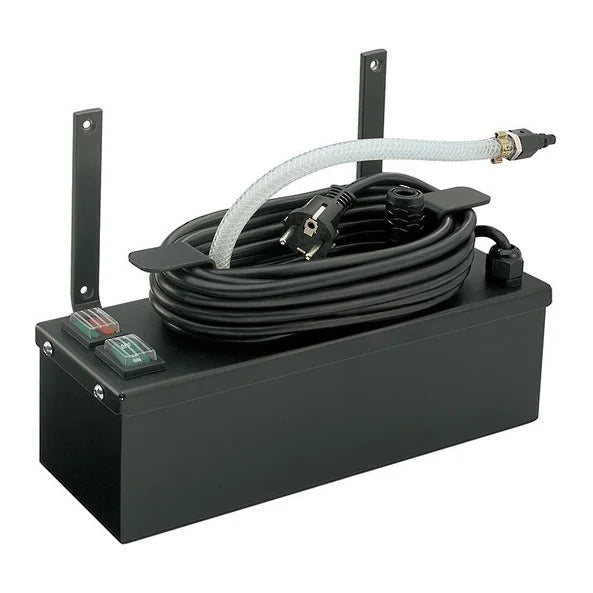

NaceCare HT 1800 in-line carpet extractor heater with mounting brackets, solution hose and power cord

NaceCare HT 1800 In-Line Heater for Carpet Extractors (181800)

by NaceCare
$1,045.42 + free shipping

Notify me when back in stock

Authorized Retailer NaceCare
Ships within 2–4 Business Days
Estimated Delivery 7–10 Business Days
Financing Available at CheckoutBreak up your purchase into manageable monthly payments
No Sales Tax Tax-free in all states except Wyoming
Manufacturer Warranty IncludedFull warranty coverage backed directly by NaceCare
Found a Lower Price? We'll Beat It. Call or send us a message and we'll beat any competitor's price.
(855) 601-5678  ·  support@oneupcleaning.com

What's in the box:

  • HT 1800 in-line heater with its own power cord
  • Mounting brackets, screws and lock nuts for NaceCare TP and AV extractors

The NaceCare HT 1800: Add Hot Water to Your NaceCare Carpet Extractor


Cold water and a good chemical handle routine extraction. Greasy restaurant entries, cafeteria traffic lanes and body oils on hotel carpet are another story: they release much faster with hot water. The NaceCare HT 1800 in-line heater sits between your extractor's pump and the wand, and heats the solution on its way out.

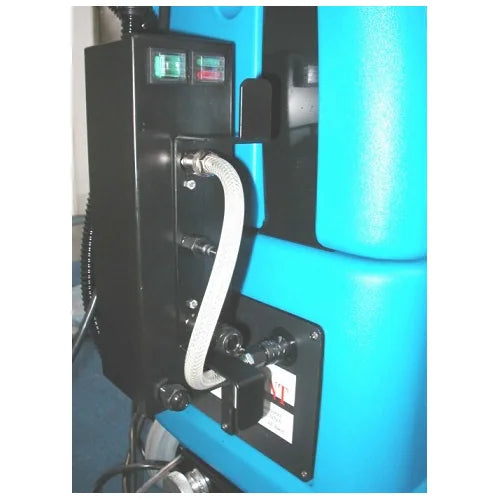

It mounts on NaceCare's TP box extractors and AV walk-behinds with the brackets in the box, and it has its own power cord, so it doesn't load the extractor's circuit.


Which Extractors Does the HT 1800 Fit?

Buying a new machine? Every one of these pages sells the extractor and heater together as a package for the same price as buying them separately.

Not sure which one fits your machine? Send us the model, or call (855) 601-5678, and we'll check it for you.


The Owner's Insights on the HT 1800

The one thing to know before you buy: the heater must plug into a different circuit from the extractor. On a typical 15 or 20 amp circuit, running both will trip the breaker. In most buildings that means running one cord to an outlet in the hallway and one to an outlet in the next room.

If you only have one circuit, NaceCare's manual has a workaround: plug in the heater first, recirculate the solution back into the tank to warm it, then unplug the heater and clean with the warm water. It's slower, but it works.

The solution reaches a steady temperature about a minute after you start spraying, and a high-limit switch shuts the element off at 158°F. Switch the heater off if you'll stop spraying for more than 30 or 40 seconds.


Keep the Heater Working

Hard water leaves lime inside the heating coil over time, and lime cuts the heater's output. Every few months, add 2 gallons of clean water and a quart of deliming chemical to the solution tank, leave the heater off and recirculate for about 30 minutes. Then rinse with clean water. Never run the heater dry, and never open its cover.

Looking for a machine with the heat built in? See our commercial carpet extractors.


Specifications: NaceCare HT 1800 In-Line Heater
Brand NaceCare
Part Number 181800
Type In-line solution heater for carpet extractors
Mounting
TP 8X, TP 18SX 2 metal brackets, 4 M4 x 20 mm screws, 2 6 mm lock nuts (included)
AV 12QX, AV 18AX 1 metal bracket (included)
Operation
Power Own power cord, separate circuit from the extractor
Warm-Up Steady temperature about 1 minute after spraying starts
High Limit 158°F (70°C)
Indicators Power light, element light, high limit light
Warranty
Coverage Per NaceCare's 2025 US warranty chart

Downloads

NaceCare HT 1800 Owner Manual (PDF, 0.7 MB)

Frequently Asked Questions

Can I plug the heater and the extractor into the same outlet?

No. The heater must be on a different circuit from the extractor, or the breaker will trip on a typical 15 or 20 amp service. If you only have one circuit, pre-heat the tank by recirculating the solution with the heater on, then unplug the heater and clean.

How hot does the water get?

The solution reaches a steady temperature about a minute after you start spraying. A high-limit switch shuts the element off if the water inside reaches 158°F (70°C).

Does it fit my extractor?

It ships with brackets for NaceCare's TP 8X, TP 12QX and TP 18SX box extractors and the AV 12QX and AV 18AX walk-behinds, and NaceCare lists it for the AV 18SX. For any other machine, send us the model and we'll check.

How do I maintain it?

Delime the coil every few months: 2 gallons of water and a quart of deliming chemical in the solution tank, recirculated for about 30 minutes with the heater off, then a clean water rinse. Never run it dry and never open the cover.
